Center Grille Assembly

  1. Open the pocket COMPL.
  2. Remove the clips, and remove the cover assembly instrument panel side RH.
    NOTE:
    • Use a plastic remover.
    • If removing is difficult, remove the weather strip, then remove the part from the gap using a plastic remover.
    G13201610Courtesy of SUBARU OF AMERICA, INC.
  3. Release the clips, and remove the ornament assembly passenger.
    G13201611Courtesy of SUBARU OF AMERICA, INC.

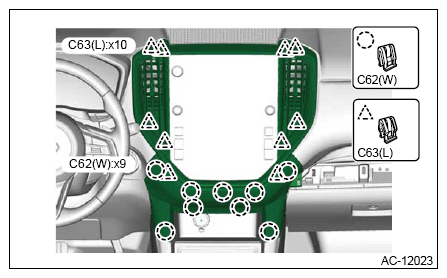

  4. Release the clips, and then remove the grille ventilation assembly center.
    G16441030Courtesy of SUBARU OF AMERICA, INC.

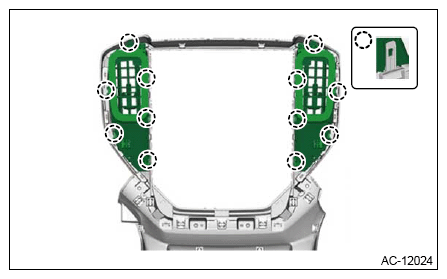

  5. Release the claws, and then remove the grille ventilation assembly center LH and RH.
    NOTE: Perform this procedure only when required.
G16441031Courtesy of SUBARU OF AMERICA, INC.
