Radiator Fan and Fan Motor Assembly: Removal

CAUTION:
  • The engine coolant is pressurized when it is hot. Wait until engine coolant cools down before proceeding the work.
  • If the engine coolant is spilt over the engine, exhaust pipe or the under cover, completely wipe it off to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the reservoir tank. Ref. to COOLING (H4DOTC)>RESERVOIR TANK>REMOVAL .
  4. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

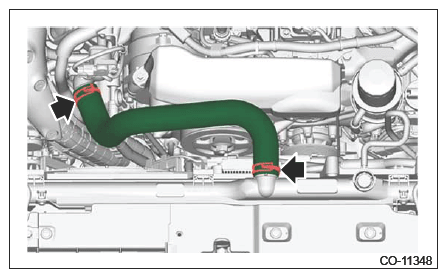

  5. Disconnect the radiator inlet hose.
    G16439482Courtesy of SUBARU OF AMERICA, INC.

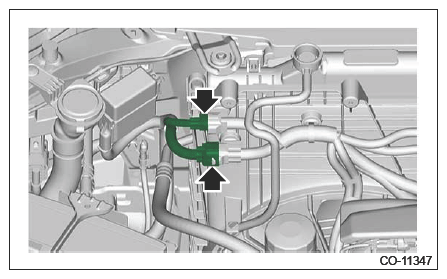

  6. Disconnect the connector from the radiator fan harness.
    G16439483Courtesy of SUBARU OF AMERICA, INC.

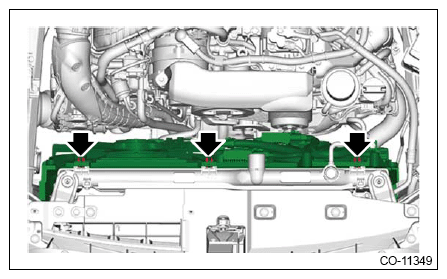

  7. Disengage the claws and remove the radiator fan and fan motor assembly.
    G16439484Courtesy of SUBARU OF AMERICA, INC.
