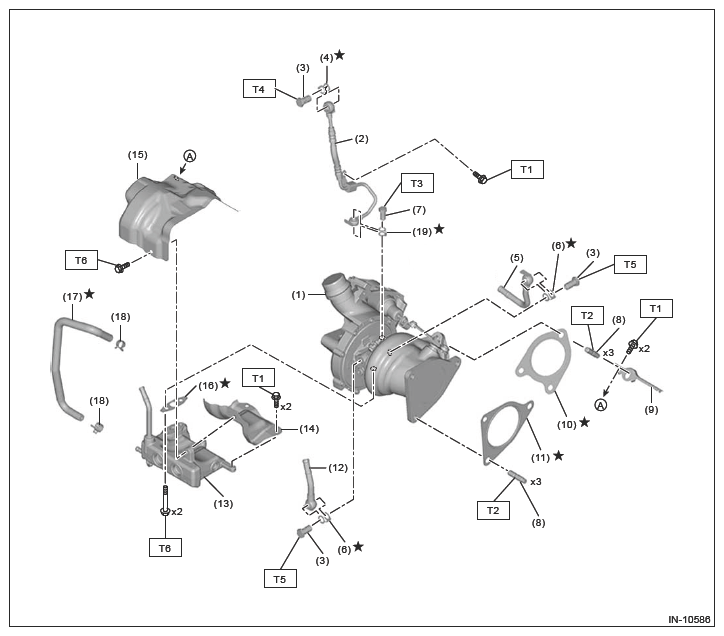

Turbocharger And Oil Catch Tank
| (1) | Turbocharger |
| (2) | Oil pipe |
| (3) | Union bolt |
| (4) | Gasket |
| (5) | Water pipe |
| (6) | Gasket |
| (7) | Union bolt |
| (8) | Stud bolt |
| (9) | Exhaust stay |
| (10) | Gasket |
| (11) | Gasket |
| (12) | Water pipe |
| (13) | Oil catch tank |
| (14) | Exhaust cover |
| (15) | Exhaust cover |
| (16) | Gasket |
| (17) | Engine oil hose |
| (18) | Clamp |
| (19) | Gasket |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 6.4 (0.7, 4.7)
T2: 14.7 (1.5, 10.8)
T3: 16 (1.6, 11.8)
T4: 24 (2.4, 17.7)
T5: 32 (3.3, 23.6)
T6: Ref. to INTAKE (INDUCTION) (H4DOTC)>OIL CATCH TANK>INSTALLATION .
