Air Cleaner Element: Removal

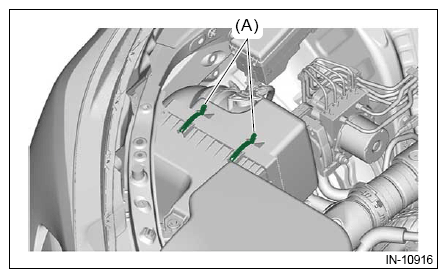

  1. Release the clip (A) lock.
    G16438880Courtesy of SUBARU OF AMERICA, INC.
  2. Lift the air cleaner case (rear), and disengage the claws of the air cleaner case (rear) from the holes on the air cleaner case (front).
    G13862347Courtesy of SUBARU OF AMERICA, INC.

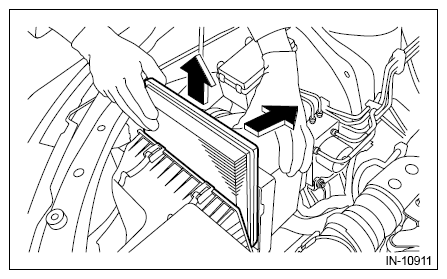

  3. Remove the air cleaner element while pulling the air cleaner case (rear) as shown in the figure.
    G16438882Courtesy of SUBARU OF AMERICA, INC.
