OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay
>>
Vehicle Dynamics Control System
>>
Wiring Diagram

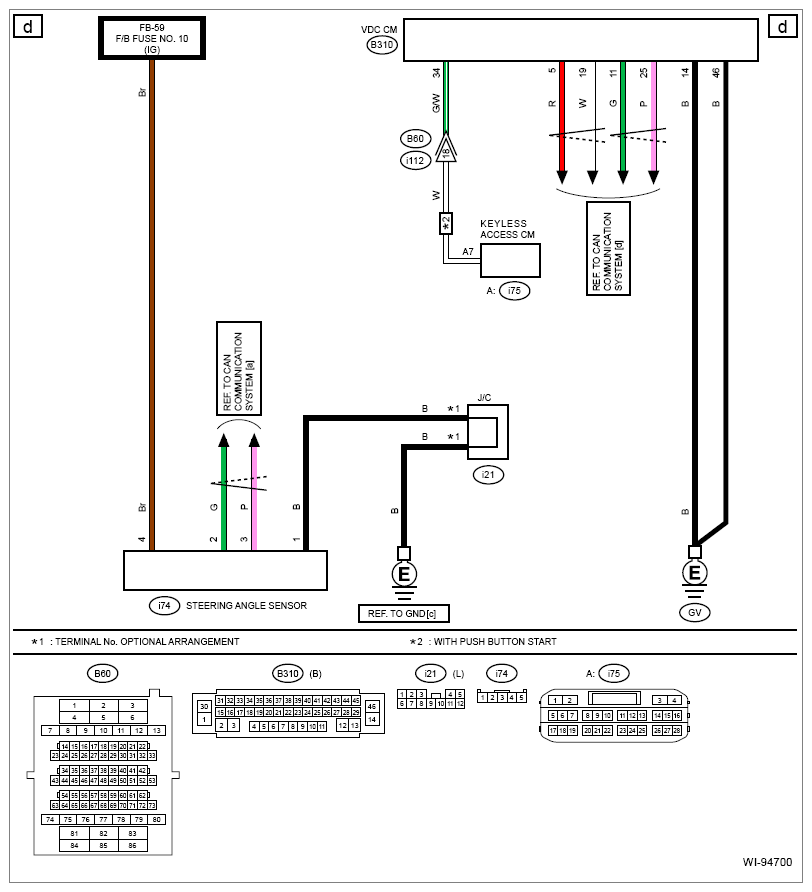

Vehicle Dynamics Control System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
