Subaru
>>
2023
>>
Ascent Limited
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams W/ Connector End Views & Fuse/Relay
>>
Fuel Gauge System
>>
Wiring Diagram

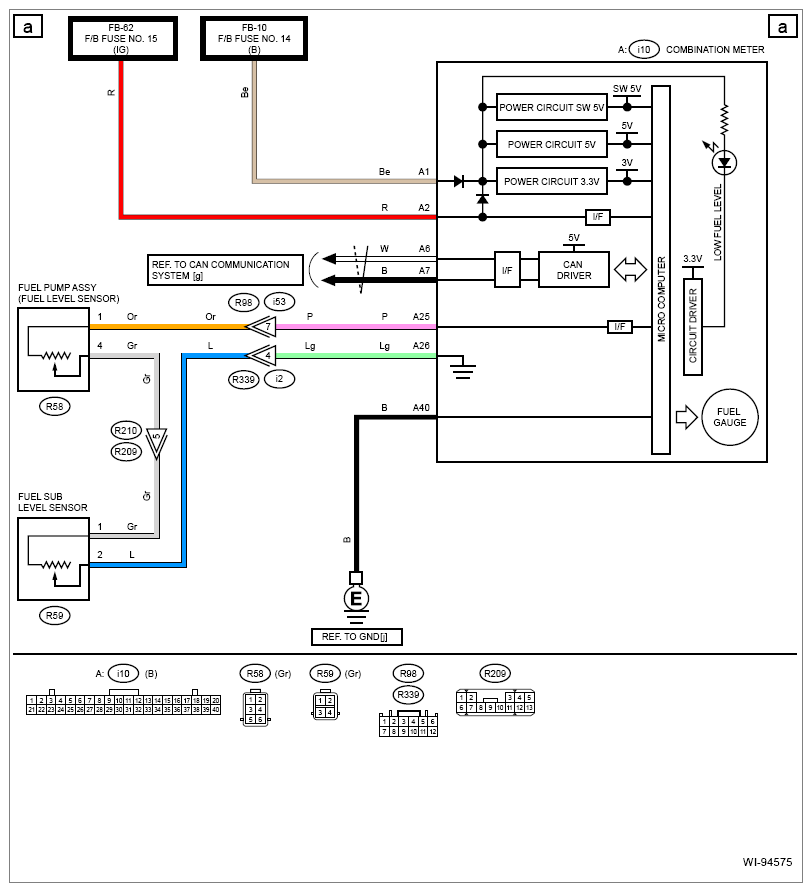

Fuel Gauge System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
