CVT Control System: Wiring Diagram

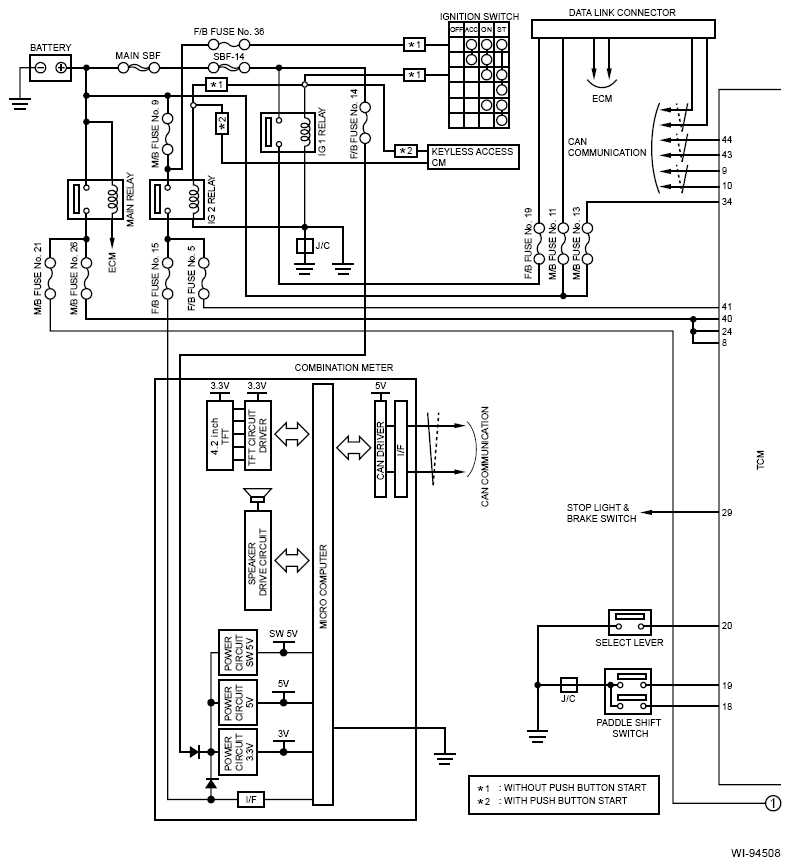

G16445896Courtesy of SUBARU OF AMERICA, INC.

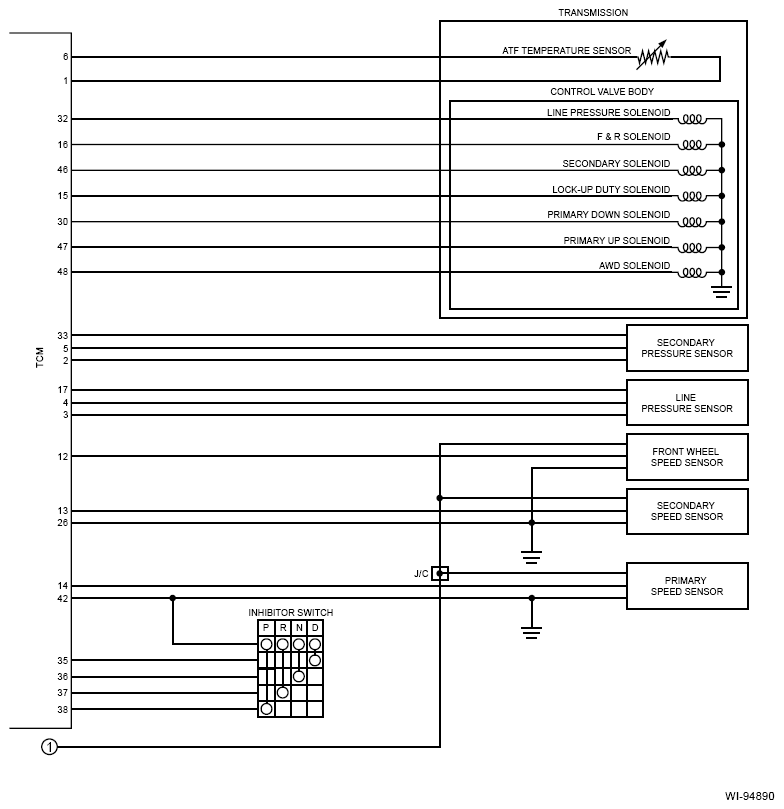

G16445897Courtesy of SUBARU OF AMERICA, INC.

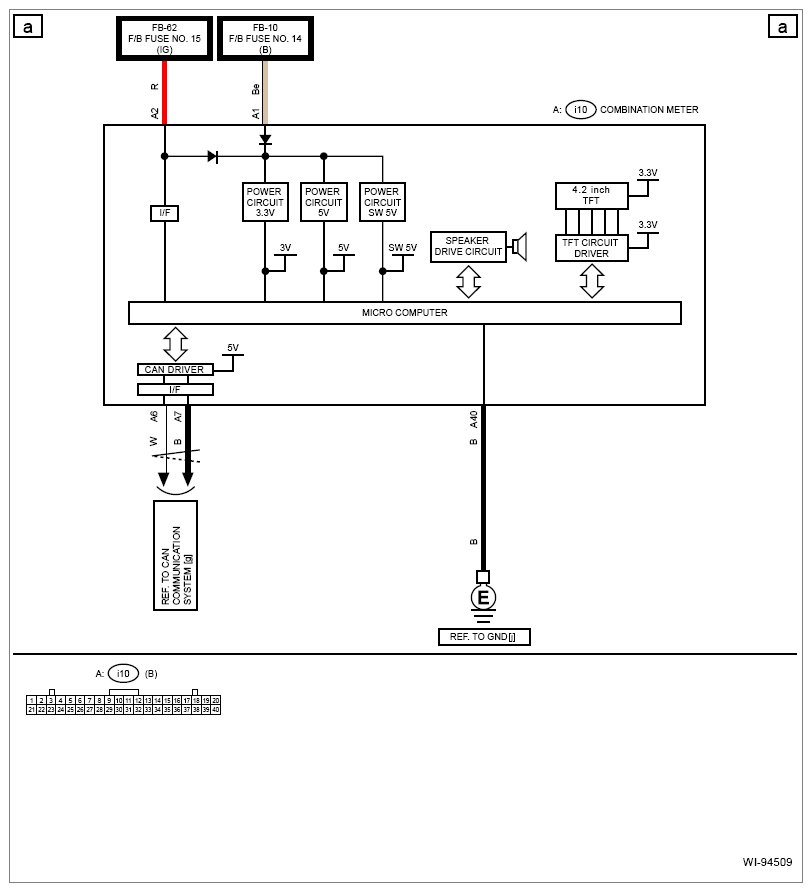

G16445898Courtesy of SUBARU OF AMERICA, INC.

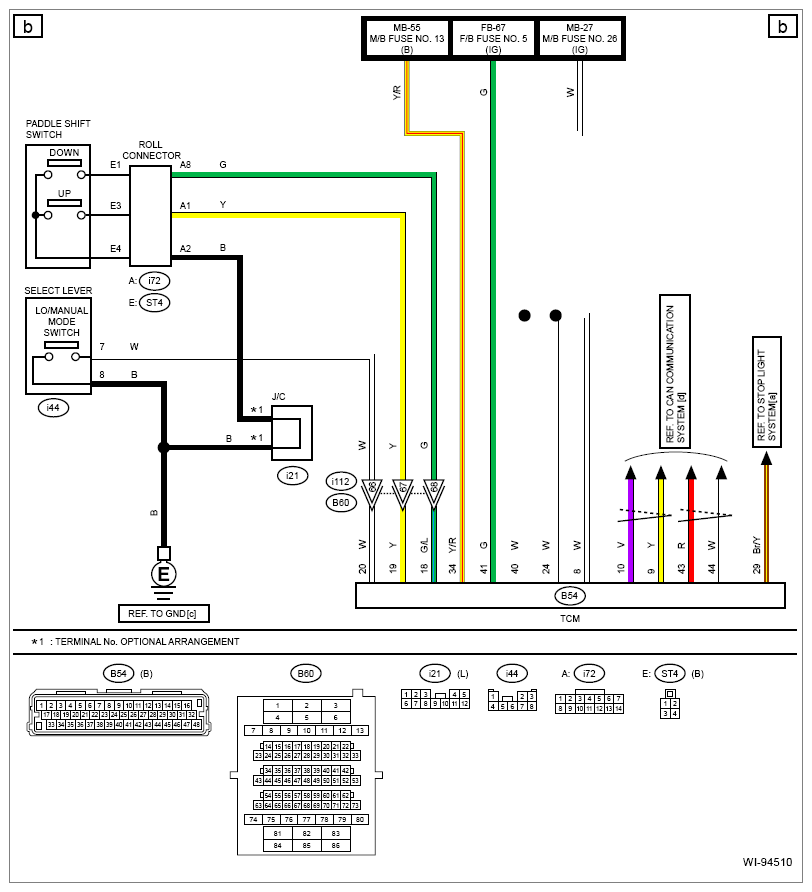

G16445899Courtesy of SUBARU OF AMERICA, INC.
G16445900Courtesy of SUBARU OF AMERICA, INC.

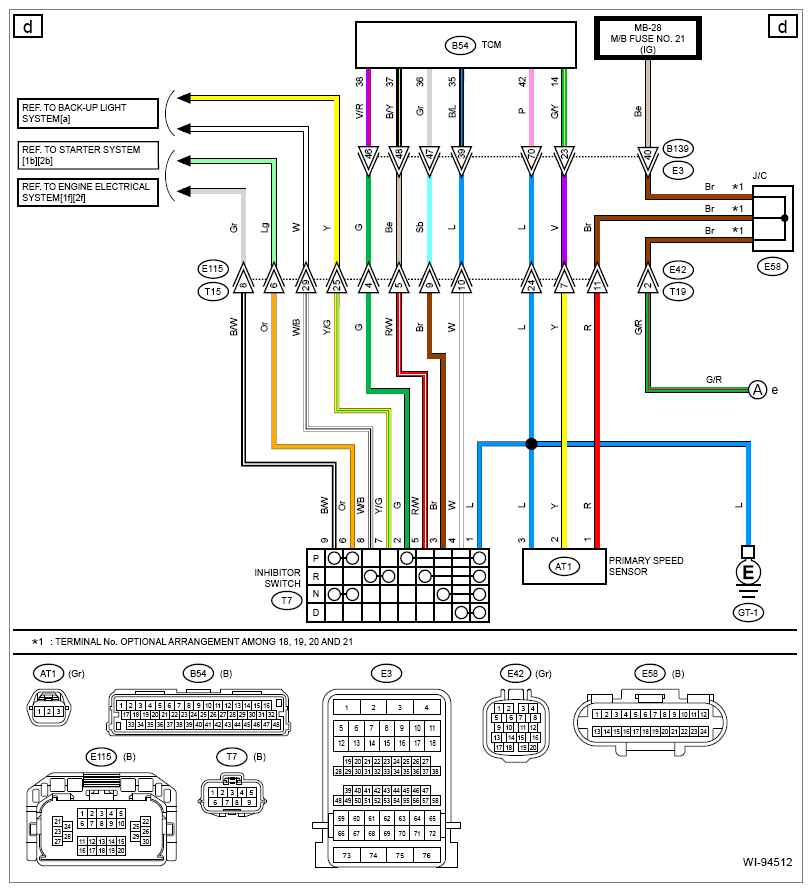

G16445901Courtesy of SUBARU OF AMERICA, INC.

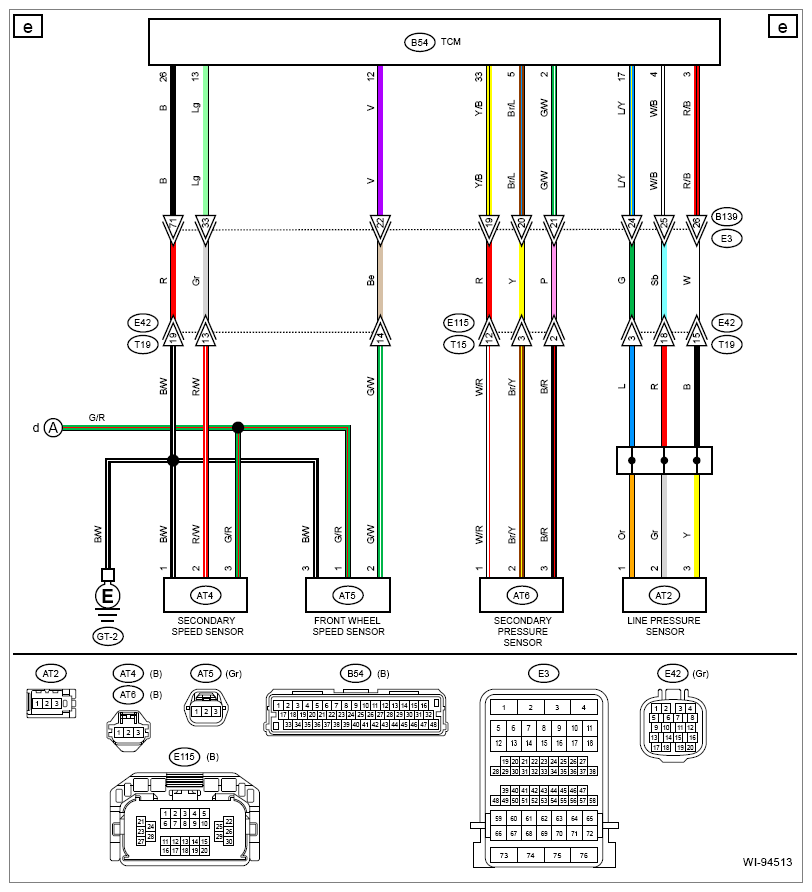

G16445902Courtesy of SUBARU OF AMERICA, INC.

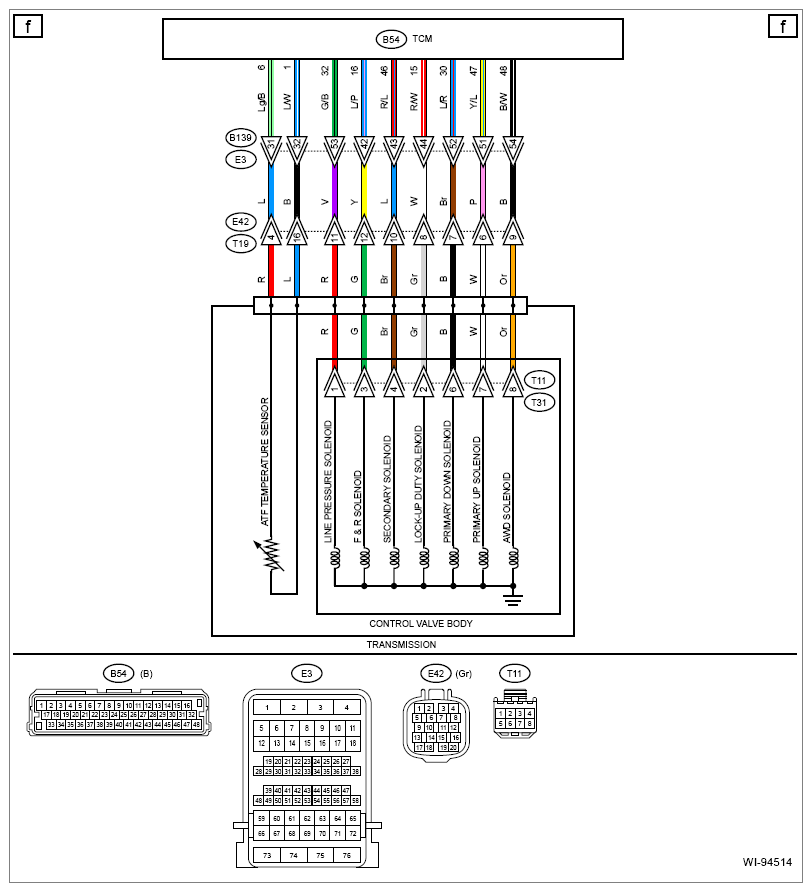

G16445903Courtesy of SUBARU OF AMERICA, INC.
