Instrument Panel Lower Cover: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION .

1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

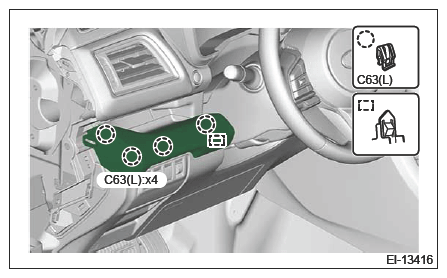

2. Remove the clips, and remove the cover assembly instrument panel side LH.

   Courtesy of SUBARU OF AMERICA, INC.

   NOTE:

   • Use a plastic remover.
   • If removing is difficult, remove the weather strip, then remove the part from the gap using a plastic remover.

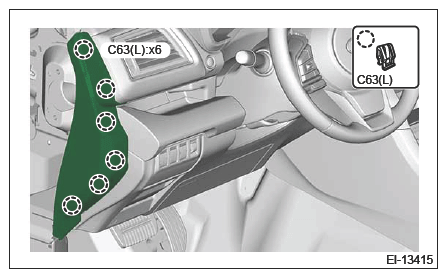

3. Release the clips, and remove the ornament panel assembly driver.

   Courtesy of SUBARU OF AMERICA, INC.

   NOTE: The ornament panel assembly driver can be removed together with the cover LWR driver.

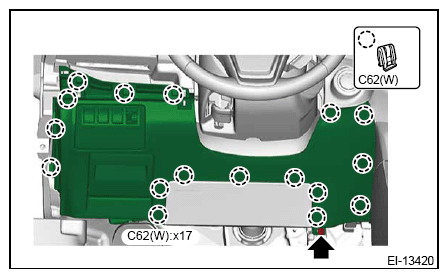

4. Remove the cover LWR driver.
   CAUTION:

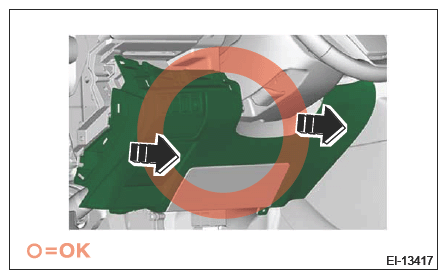

   • When removing the cover LWR driver, be sure to pull it toward you.

     Courtesy of SUBARU OF AMERICA, INC.

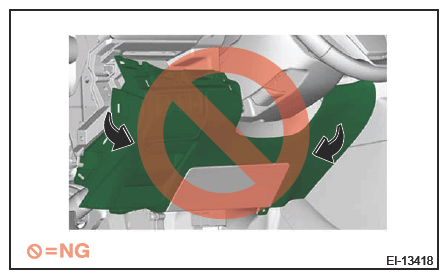

   • If attempting to remove by turning it laterally, the bridging part may be damaged.

     Courtesy of SUBARU OF AMERICA, INC.

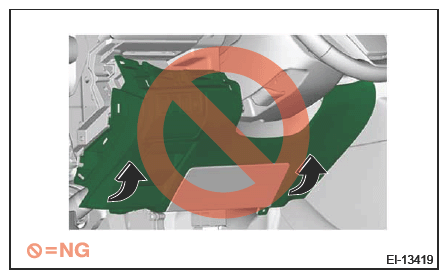

   • If attempting to remove by turning it upward, the claws may be damaged.

   Courtesy of SUBARU OF AMERICA, INC.

   1. Remove the screws and release the clip.
   2. Disconnect each connector and remove the cover LWR driver.

Courtesy of SUBARU OF AMERICA, INC.
