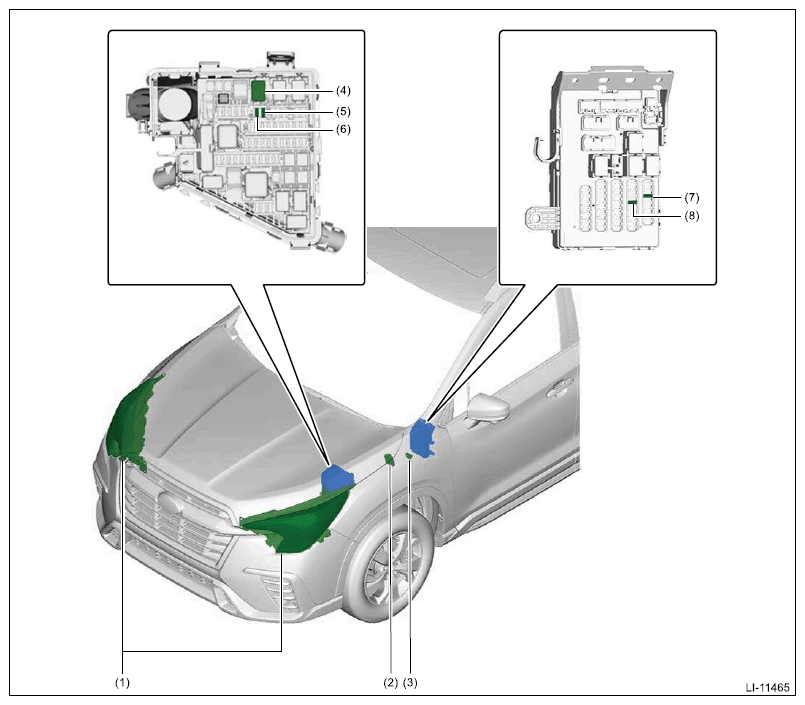

Exterior Lights (Diagnostics): Electrical Component Location: Location

Courtesy of SUBARU OF AMERICA, INC.

(1) Headlight ASSY Headlight beam leveler actuator SRH swivel actuator

(2) Auto headlight beam leveler control module

(3) Data link connector

(4) Headlight relay Lo

(5) M/B fuse No. 3

(6) M/B fuse No. 4

(7) F/B fuse No. 14

(8) F/B fuse No. 18
