Back-Up Light And Neutral Position Switch

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
  2. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL

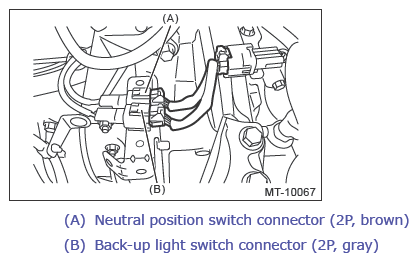

  3. Remove the coupling harness.
    G14611673Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the harness connector from bracket.
  5. Lift up the vehicle.
  6. Remove the crossmember support - rear LH.
    G11256169Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)
  8. Remove the harness from each clip.

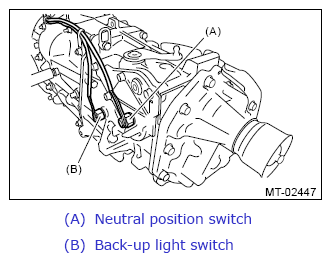

  9. Remove the back-up light switch & neutral position switch with the harness.
    G14611675Courtesy of SUBARU OF AMERICA, INC.
