Release Bearing and Lever: Installation

Install the pivot.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)
Install the dust cover.
Apply grease to the release lever.
Preparation items:

Grease: NICHIMOLY N-130 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Install the lever spring to the release lever.

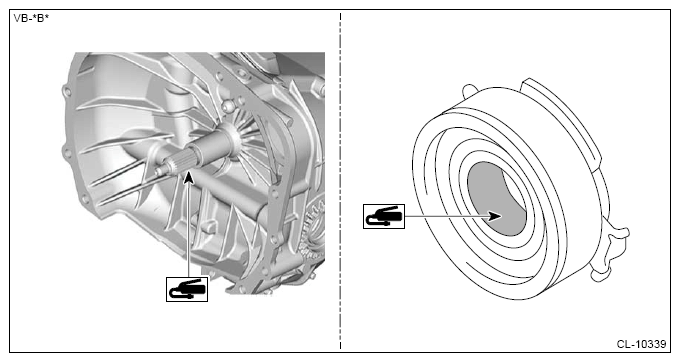

Apply grease to the spline portion of the input shaft and inner periphery of the release bearing.
Preparation items:

Grease: NICHIMOLY N-130 or equivalent

Courtesy of SUBARU OF AMERICA, INC.
Set the release bearing to the release lever.
Install the release lever and release bearing as a unit.
NOTE:
- Make sure the lever spring is engaged with the pivot.
- After installing the parts, move the release lever back and forth and check if the release bearing moves smoothly.
Install the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>INSTALLATION
