Clutch Pipe and Hose: Removal

CAUTION:

Do not let clutch fluid come into contact with the painted surface of the vehicle.
Wash away with water immediately and wipe off if it is spilled by accident.
Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". Ref. to AIRBAG SYSTEM>GENERAL DESCRIPTION>CAUTION

Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the clutch pedal. Ref. to BRAKE>BRAKE PEDAL>REMOVAL

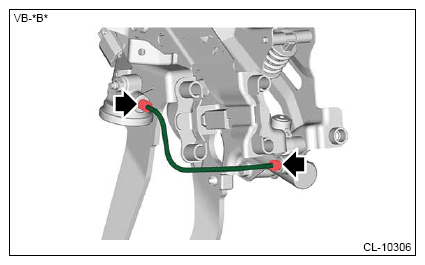

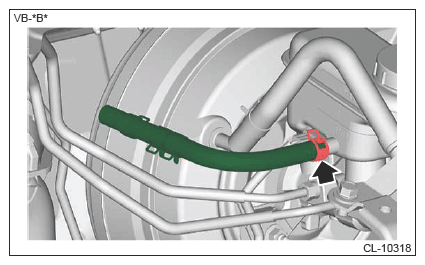

Remove the reservoir hose assembly.

Courtesy of SUBARU OF AMERICA, INC.

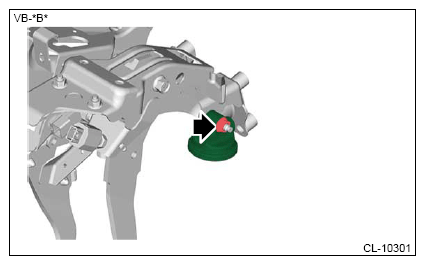

Remove the clutch pipe B.

Courtesy of SUBARU OF AMERICA, INC.

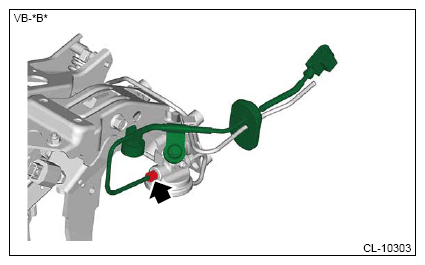

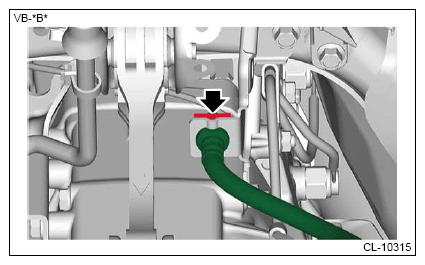

Remove the clamp, and disconnect the clutch hose from the clutch hose bracket.

Courtesy of SUBARU OF AMERICA, INC.

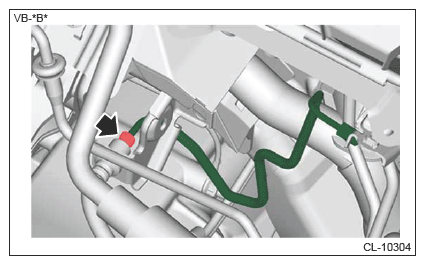

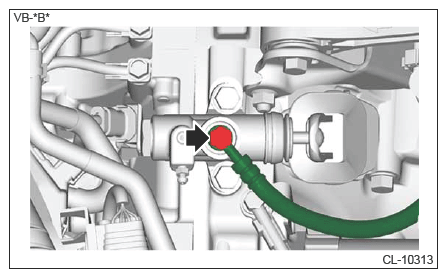

Remove the clutch hose from the operating cylinder.

Courtesy of SUBARU OF AMERICA, INC.

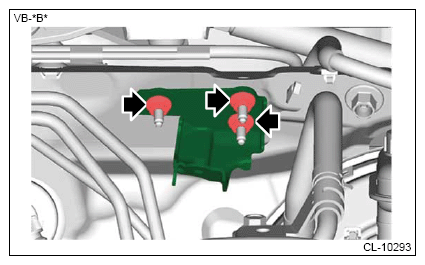

Remove the clutch hose bracket.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

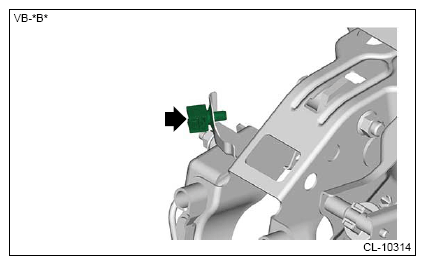

Remove the clutch connector bracket.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.

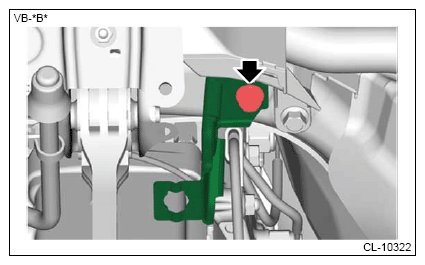

Remove the clutch pipe A.
NOTE:
Remove the mass damper and clamp as a unit.

Courtesy of SUBARU OF AMERICA, INC.

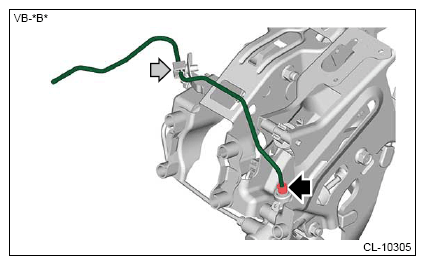

Remove the mass damper.

NOTE:

Perform this procedure only when required.

Remove the mass damper and clamp as a unit from the clutch pipe A.

Courtesy of SUBARU OF AMERICA, INC.

Disassemble the mass damper and clamp.

Courtesy of SUBARU OF AMERICA, INC.

Remove the two-way connector.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch pipe C.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clamp.
NOTE:
Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch pipe D.

Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch damper.

Courtesy of SUBARU OF AMERICA, INC.
