Clutch Pipe and Hose: Installation

  1. Install the clutch damper.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

  2. Install the clutch pipe D using a crowfoot wrench.
    TIGHTENING TORQUE SPECIFICATIONS

    Calculation formula
    T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE:

    If the effective length of the tool used is unknown, consult the manufacturer of the tool.

    G14611971Courtesy of SUBARU OF AMERICA, INC.
  3. Install the clamp.
  4. Install the clutch pipe C using a crowfoot wrench.
    TIGHTENING TORQUE SPECIFICATIONS

    Calculation formula
    T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE:

    If the effective length of the tool used is unknown, consult the manufacturer of the tool.

    G14611972Courtesy of SUBARU OF AMERICA, INC.
  5. Install the mass damper.
    1. Install the mass damper and clamp.
    2. Install the mass damper and clamp as a unit to the clutch pipe A.
  6. Install the two-way connector to the clutch pipe A using a crowfoot wrench.
    TIGHTENING TORQUE SPECIFICATIONS

    Calculation formula
    T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE:

    If the effective length of the tool used is unknown, consult the manufacturer of the tool.

    G14611973Courtesy of SUBARU OF AMERICA, INC.
  7. Install the clutch pipe A using a crowfoot wrench.
    TIGHTENING TORQUE SPECIFICATIONS

    Calculation formula
    T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE:

    If the effective length of the tool used is unknown, consult the manufacturer of the tool.

    G14611974Courtesy of SUBARU OF AMERICA, INC.
  8. Install the clutch connector bracket.

    Tightening torque:

    7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

  9. Install the clutch hose bracket.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

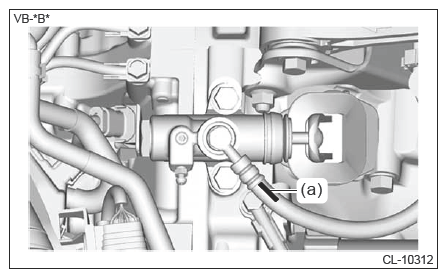

  10. Install the clutch hose to the operating cylinder using a new gasket.
    NOTE:

    Face the mark (a) of the clutch hose in the top direction.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G14611956Courtesy of SUBARU OF AMERICA, INC.
  11. Install the clutch hose to the clutch hose bracket using a clamp.
  12. Install the clutch pipe B using a crowfoot wrench.
    TIGHTENING TORQUE SPECIFICATIONS

    Calculation formula
    T = 15.5 N.m (1.6 kgf-m, 11.4 ft-lb) x L1/(L1 + L2)
    T: Reading of the torque wrench
    L1: Effective length of the torque wrench
    L2: Effective length of the crowfoot wrench
    NOTE:

    If the effective length of the tool used is unknown, consult the manufacturer of the tool.

    G14611976Courtesy of SUBARU OF AMERICA, INC.
  13. Install the reservoir hose assembly.
    NOTE:

    Face the mark (a) of the reservoir hose assembly in the top direction.

    G14611977Courtesy of SUBARU OF AMERICA, INC.
  14. Install the clutch pedal. Ref. to BRAKE>BRAKE PEDAL>INSTALLATION
  15. Bleed air from the clutch fluid. Ref. to CLUTCH SYSTEM>AIR BLEEDING>PROCEDURE
  16. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
