Transmission Rear CROSSMEMBER And Rear Cushion Rubber

WARNING: This page is about a different variant/trim than selected.

Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)
Remove the center exhaust cover. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL
NOTE:
Remove the center exhaust cover only.
Set the transmission jack under the transmission.
CAUTION:
Make sure that the support plates of transmission jack do not touch the oil pan.

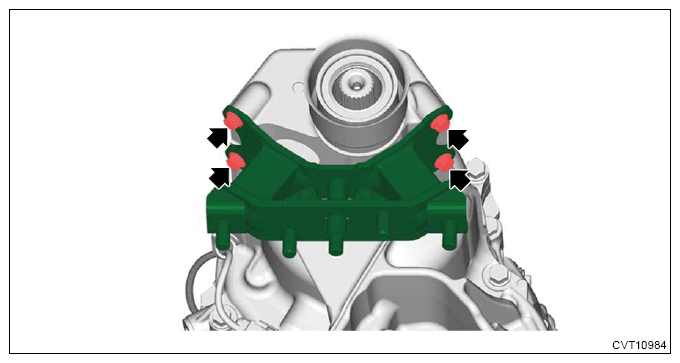

Remove the transmission rear crossmember.

Courtesy of SUBARU OF AMERICA, INC.
Remove the rear cushion rubber.

Courtesy of SUBARU OF AMERICA, INC.
