Transmission Harness: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL
  2. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL

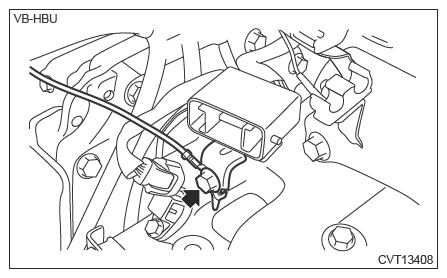

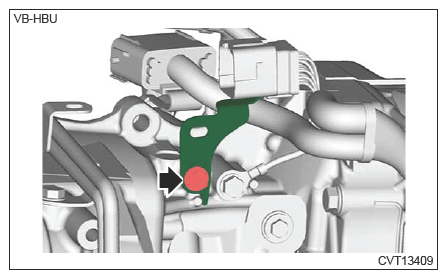

  3. Remove the ground cord and stay.
    G14611130Courtesy of SUBARU OF AMERICA, INC.
    G14611131Courtesy of SUBARU OF AMERICA, INC.
  4. Attach the ST.
    NOTE:

    When attaching the ST to the (a) positions, spacers or similar of 2.0 mm (0.08 in) or more in thickness are necessary.

    Preparation tool:

    ST: STAND ASSY (18632AA000)

    G13225799Courtesy of SUBARU OF AMERICA, INC.
  5. Place the transmission body.
    NOTE:

    Prepare a container for draining of oil, because CVTF remaining inside the transmission body may flow out from the input shaft portion.

  6. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL
  7. Remove the bolt securing the transmission harness.
    G06654468Courtesy of SUBARU OF AMERICA, INC.

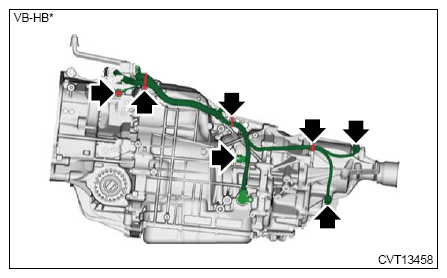

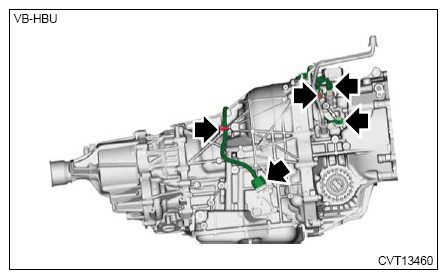

  8. Disconnect the connector and ground terminal as shown in the figure, and release the clips.
    G14611134Courtesy of SUBARU OF AMERICA, INC.
    G14611135Courtesy of SUBARU OF AMERICA, INC.

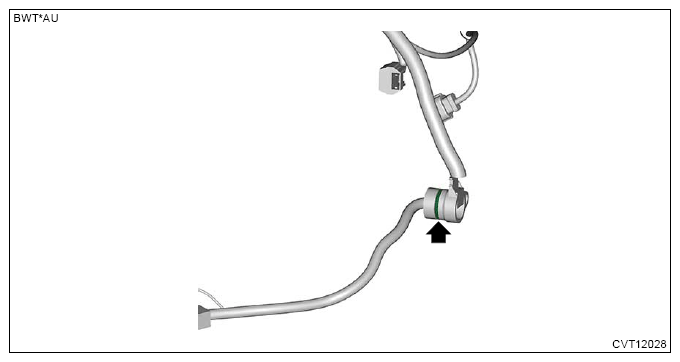

  9. Remove the O-rings.
    G13621987Courtesy of SUBARU OF AMERICA, INC.
