Transmission Case: Assembly

WARNING: This page is about a different variant/trim than selected.

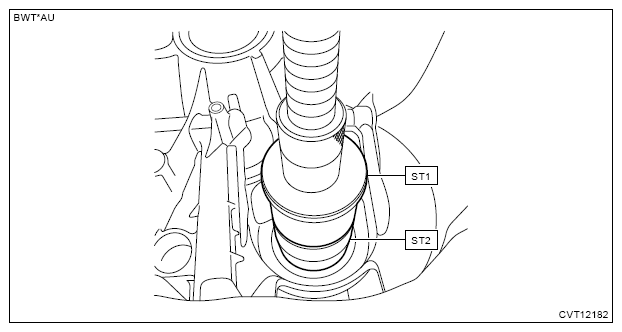

Press-fit a new ball bearing (reduction driven gear side) using ST1, ST2 and a press.
NOTE:
Apply CVTF to the press-fitting area.

Preparation tool:

ST1: INSTALLER (398177700)

ST2: INSTALLER (20099AE020)

Courtesy of SUBARU OF AMERICA, INC.
Press-fit a new roller bearing using ST1, ST2 and a press.
NOTE:
Apply CVTF to the press-fitting area.

Preparation tool:

ST1: INSTALLER (20099AE020)

ST2: PRESS SNAP RING (499755602)

Courtesy of SUBARU OF AMERICA, INC.

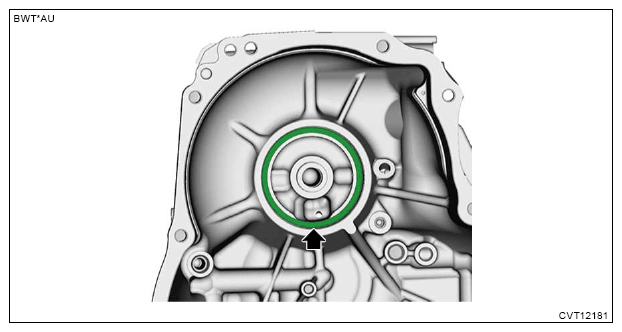

Install a new snap ring (secondary pulley side).

Courtesy of SUBARU OF AMERICA, INC.

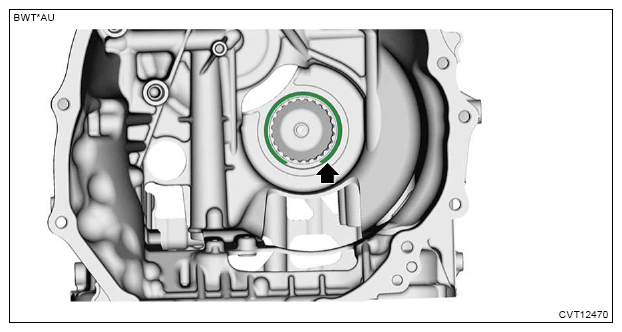

Set the spacer.

Courtesy of SUBARU OF AMERICA, INC.

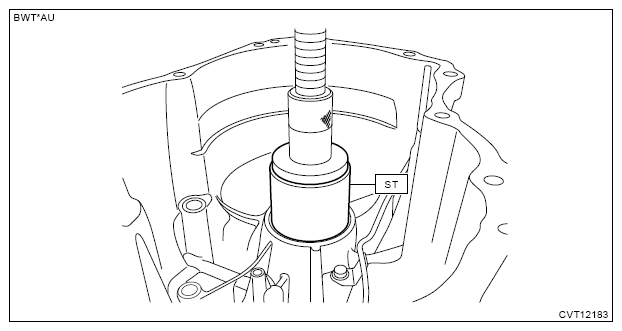

Using the ST and a press, press-fit a new roller bearing.
CAUTION:
Be careful not to allow the transmission case to be tilted.

NOTE:
Apply CVTF to the press-fitting area.

Preparation tool:

ST: INSTALLER (20099AE020)

Courtesy of SUBARU OF AMERICA, INC.

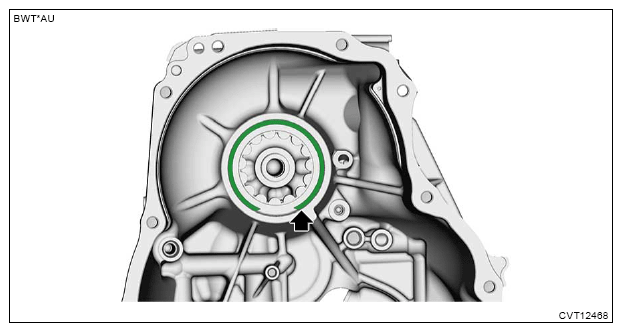

Install a new snap ring (primary pulley side).

Courtesy of SUBARU OF AMERICA, INC.

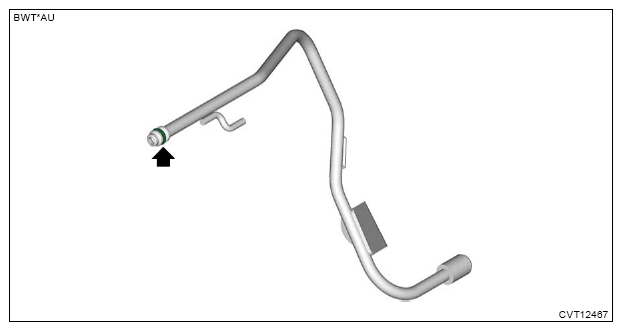

Install a new O-ring.
NOTE:
Apply CVTF to the O-rings.

Courtesy of SUBARU OF AMERICA, INC.

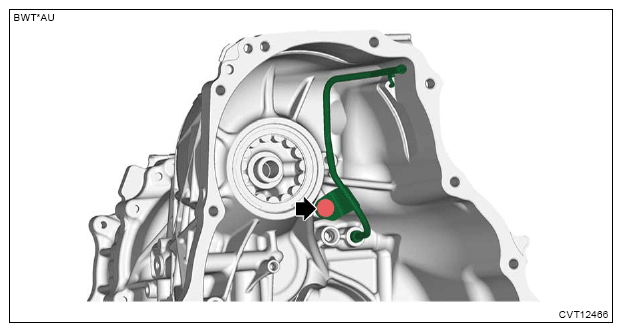

Install the lubrication pipe.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

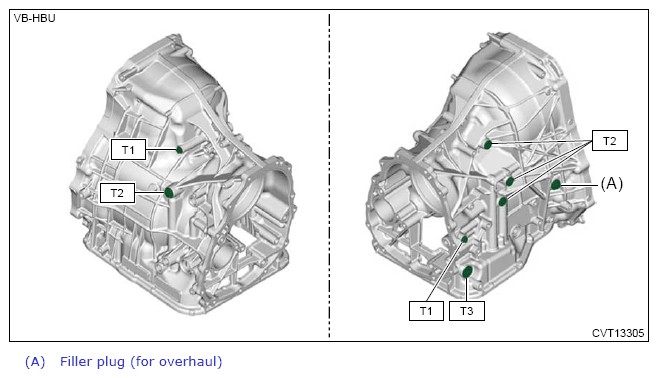

Install the plugs with new O-rings.
NOTE:
- Apply CVTF to the O-rings.
- Replace the filler plug gasket with a new part after adding CVTF.
Tightening torque:

T1: 13 N.m (1.3 kgf-m, 9.6 ft-lb)

T2: 25 N.m (2.5 kgf-m, 18.4 ft-lb)

T3: 50 N.m (5.1 kgf-m, 36.9 ft-lb)

Fig 1: CVTF, Plugs With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
