Transfer Reduction Driven Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the center differential carrier. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>REMOVAL

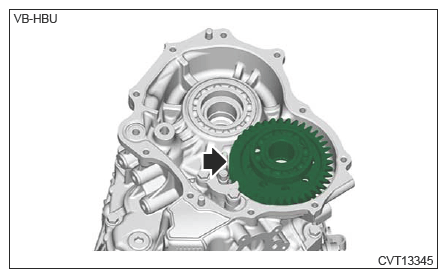

  2. Remove the transfer reduction driven gear.
    G14611289Courtesy of SUBARU OF AMERICA, INC.
