Transfer Reduction Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.

Select the transfer reduction driven gear shim.

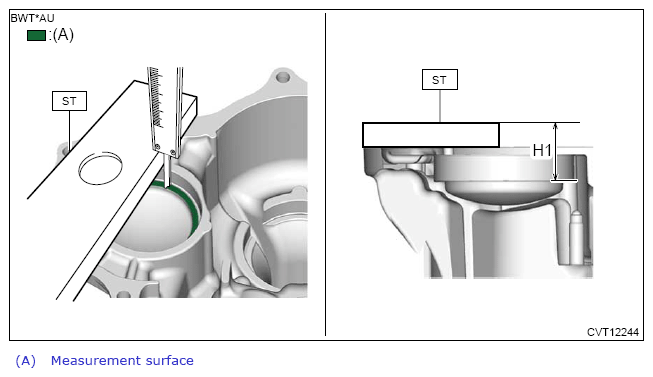

Using the ST, measure the height "H1" from the ST end face to the ball bearing catch surface.

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

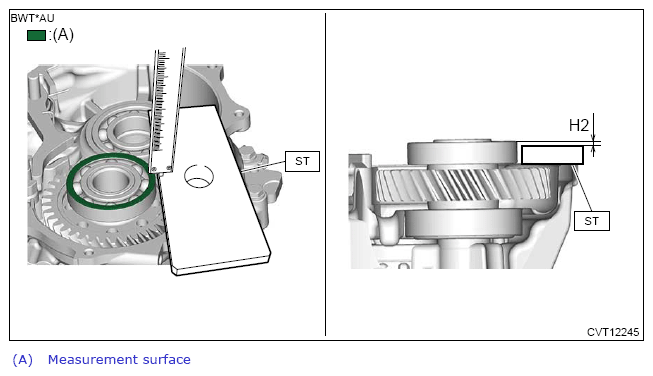

Using the ST, measure the height "H2" from the end face of the ball bearing outer ring to the ST.

Preparation tool:

ST: GAUGE (499575600)

Courtesy of SUBARU OF AMERICA, INC.

Using the following calculation, calculate an appropriate thickness "T" of the transfer reduction driven gear shim.

NOTE:

Adjust using 0 - 2 pieces.

T = (H1 - 15 mm (0.6 in)) - (H2 + 15 mm (0.6 in)) - 0.05 - 0.25 mm (0.002 - 0.010 in)

T	Transfer reduction driven gear shim thickness (mm (in))
H1	Measured value (mm (in)) of step (1)
H2	Measured value (mm (in)) of step (3)
15 mm (0.6 in)	Thickness of ST (GAUGE)
0.05 - 0.25 mm (0.002 - 0.010 in)	Clearance specification

Install the transfer reduction driven gear.

Courtesy of SUBARU OF AMERICA, INC.
Install the center differential carrier. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CENTER DIFFERENTIAL CARRIER>INSTALLATION
