Reverse Brake: Disassembly

WARNING: This page is about a different variant/trim than selected.

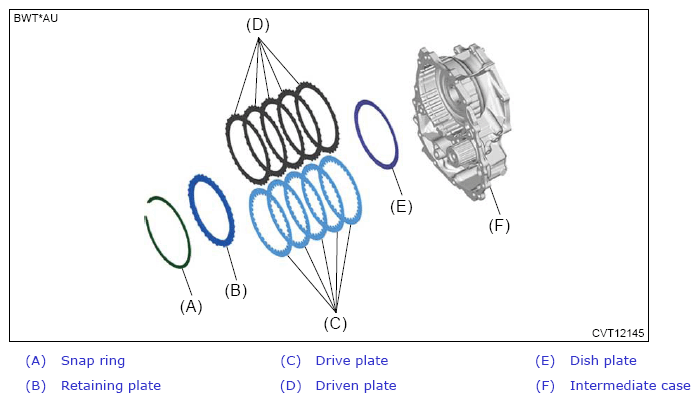

Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.

Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

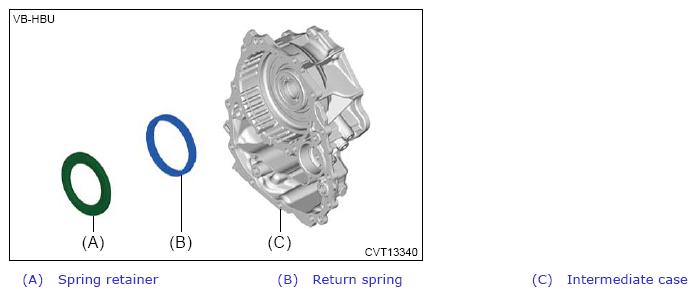

Remove the spring retainer and return spring.

Courtesy of SUBARU OF AMERICA, INC.

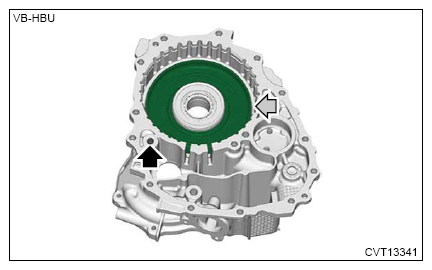

Blow compressed air through the hole shown in the figure, and remove the reverse brake piston.

Courtesy of SUBARU OF AMERICA, INC.
