Rear Wheel Speed Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

If water or oil contacts the connector terminal of rear wheel speed sensor, replace it with a new part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)
Remove the center exhaust cover. Ref. to EXHAUST (H4DOTC)>REAR EXHAUST PIPE>REMOVAL
NOTE:
Remove the center exhaust cover only.

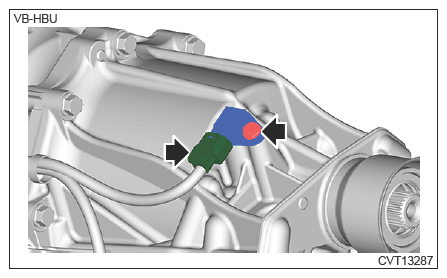

Disconnect the connector and remove the rear wheel speed sensor.

Courtesy of SUBARU OF AMERICA, INC.
