Rear Drive Shaft: Installation
WARNING: This page is about a different variant/trim than selected.
- Select the rear drive shaft shim.

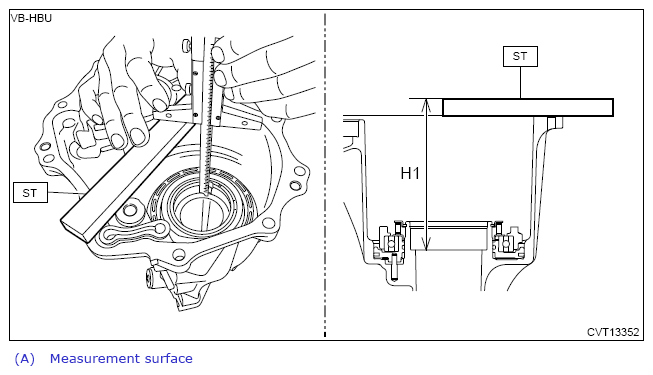

- Using the ST, measure the height "H1" from the end surface of ST to the contact surface of ball bearing.
Preparation tool:
ST: GAUGE (499575400)

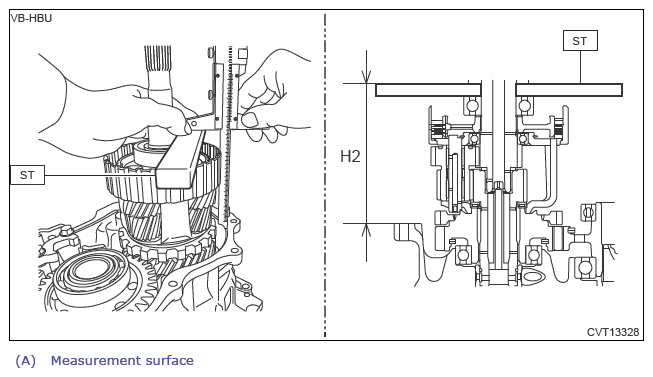

- Using the ST, measure the height "H2" from the ST end face to the intermediate case mating surface.NOTE:
Set the ST so that it does not ride on the ball bearing inner race.
Preparation tool:
ST: GAUGE (499575400)
- Using the following calculation, calculate an appropriate thickness "T" of the rear drive shaft shim.NOTE:
Adjust using 0 - 4 pieces.
T = H1 - H2 - 0.05 - 0.25 mm (0.002 - 0.010 in)
T Rear drive shaft shim thickness (mm (in)) H1 Measured value (mm (in)) of step (1) H2 Measured value (mm (in)) of step (2) 0.05 - 0.25 mm (0.002 - 0.010 in) Clearance specification
- Using the ST, measure the height "H1" from the end surface of ST to the contact surface of ball bearing.
- Install the rear drive shaft.
- Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION
