Rear Drive Shaft: Disassembly

WARNING: This page is about a different variant/trim than selected.

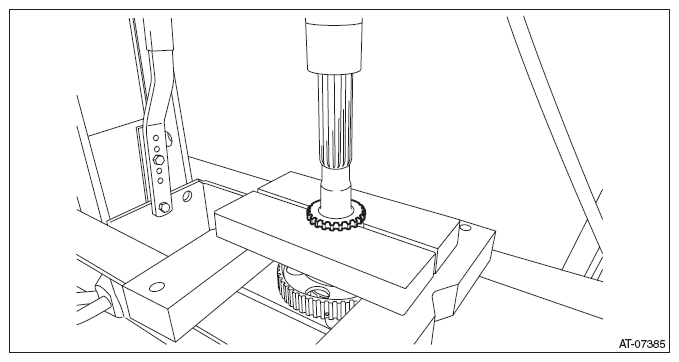

Remove the ball bearing (rear side (small)) using the ST and a press.
CAUTION:
Be careful not to drop the rear drive shaft.

Preparation tool:

ST: REMOVER (498077400)

Courtesy of SUBARU OF AMERICA, INC.

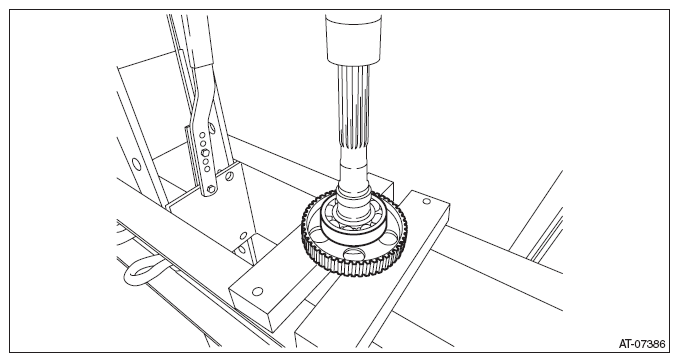

Using a press, remove the revolution gear.
CAUTION:
Be careful not to drop the rear drive shaft.

Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the ball bearing (front side), ball bearing (rear side (large)) and clutch hub as a single unit.
CAUTION:
Be careful not to drop the rear drive shaft.

Courtesy of SUBARU OF AMERICA, INC.
