Rear Drive Shaft: Assembly

WARNING: This page is about a different variant/trim than selected.

Using a press, press-fit a new ball bearing (front side).
NOTE:
- Apply CVTF to the press-fitting area.
- Press-fit the part to the position where it stops.
Courtesy of SUBARU OF AMERICA, INC.
Using a press, press-fit the clutch hub.
NOTE:
- Make sure the clutch hub is facing the correct direction.
- Press-fit CVTF in the press-fitting area.
- Press-fit the part to the position where it stops.
Courtesy of SUBARU OF AMERICA, INC.
Using a press, press-fit a new ball bearing (rear side (large)).
NOTE:
- Apply CVTF to the press-fitting area.
- Press-fit the part to the position where it stops.
Courtesy of SUBARU OF AMERICA, INC.

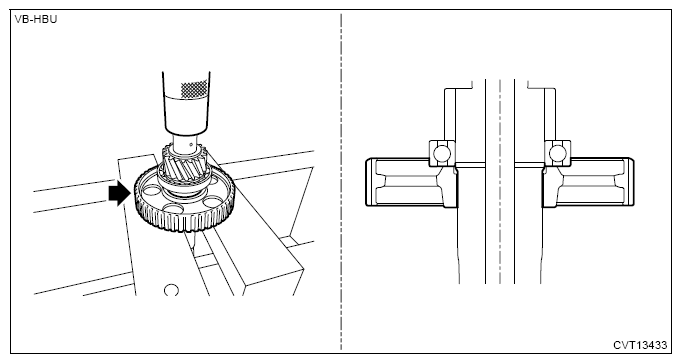

Using a press, press-fit a new revolution gear.
NOTE:
- Make sure the revolution gear is facing the correct direction.
- Apply CVTF to the press-fitting area.
- Press-fit the part to the position where it stops.
Courtesy of SUBARU OF AMERICA, INC.
Using the ST and a press, press-fit a new ball bearing (rear side (small)).
NOTE:
- Apply CVTF to the press-fitting area.
- Press-fit the part to the position where it stops.
Preparation tool:

ST1: BUSHING 1-2 INSTALLER (499277100)

ST2: INSTALLER (499757002)

Courtesy of SUBARU OF AMERICA, INC.
