Parking Pawl: Installation
WARNING: This page is about a different variant/trim than selected.
- Operate the shifter arm to set to the "N range" position.NOTE:
Align the holes of the shifter arm and inhibitor switch.

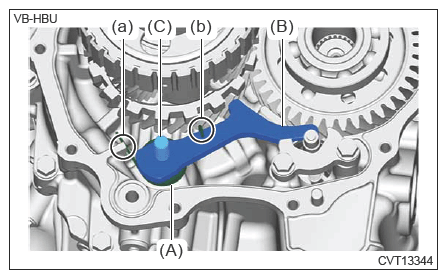

- Install the return spring (A), parking pawl (B) and shaft (C).NOTE:
- Make sure that the end (a) of return spring contacts the rib.
- Make sure that the end (b) of return spring is sticking out of the parking pawl.
- Install the extension case. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>EXTENSION CASE>INSTALLATION
