Oil Pump Chain: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL

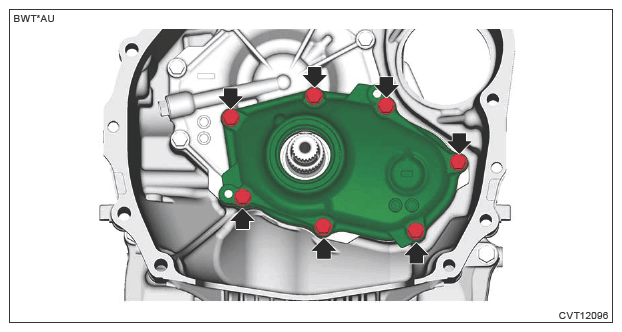

Remove the bolts which hold the oil pump chain cover.

Courtesy of SUBARU OF AMERICA, INC.

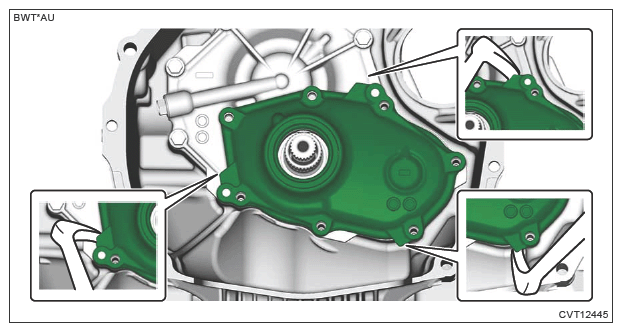

Using a crowbar wrapped with protection tape or similar, expand the clearance and remove the oil pump chain cover, oil pump sprocket and oil pump chain as a single unit.

Courtesy of SUBARU OF AMERICA, INC.
Remove the seal rings.

Courtesy of SUBARU OF AMERICA, INC.

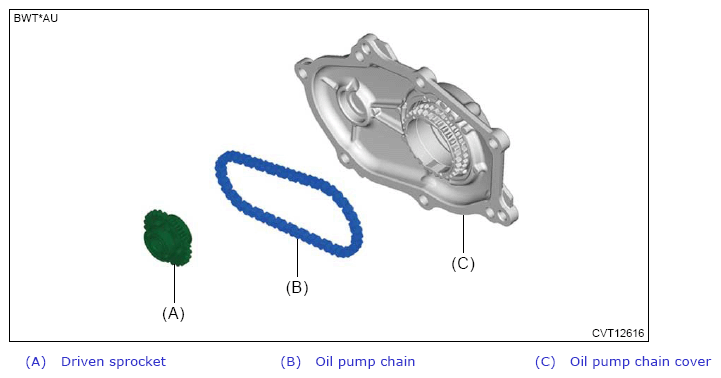

Remove the driven sprocket and oil pump chain.
CAUTION:
If the ball bearing is removed from the driven sprocket, be sure to replace the driven sprocket with a new part.

NOTE:
The driven sprocket is a non-disassembly part.

Courtesy of SUBARU OF AMERICA, INC.

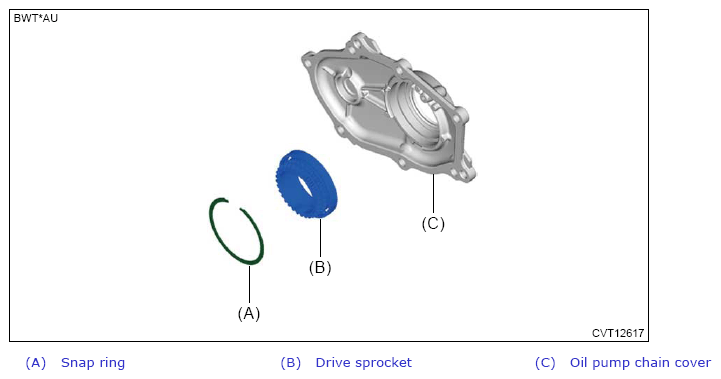

Remove the snap ring and remove the drive sprocket.

Courtesy of SUBARU OF AMERICA, INC.

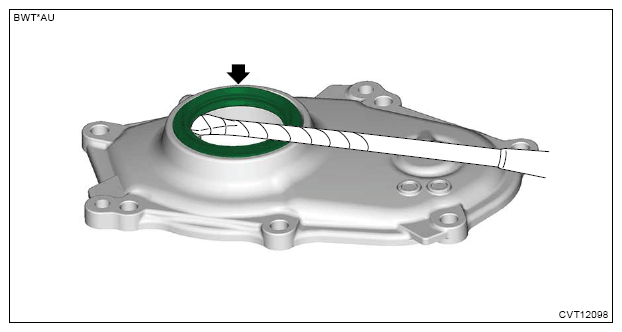

Remove the oil seal using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.
Remove the liquid gasket from the oil pump chain cover and the converter case.
