Oil Pump Chain: Installation

WARNING: This page is about a different variant/trim than selected.

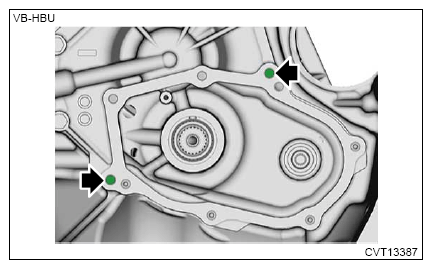

  1. Check the projection (A) of the knock pins.
    NOTE:

    When attached on the oil pump chain cover side, install on the converter case cover side.

    Specification:

    7.5 - 8.5 mm (0.30 - 0.33 in)

    G14611220Courtesy of SUBARU OF AMERICA, INC.
    G14611221Courtesy of SUBARU OF AMERICA, INC.
  2. Press-fit a new oil seal using ST and a press.
    NOTE:

    Apply CVTF to the press-fitting area.

    Preparation tool:

    ST: HOUSING BUSHING INSTALLER AND REMOVER (927720000)

    G13200339Courtesy of SUBARU OF AMERICA, INC.

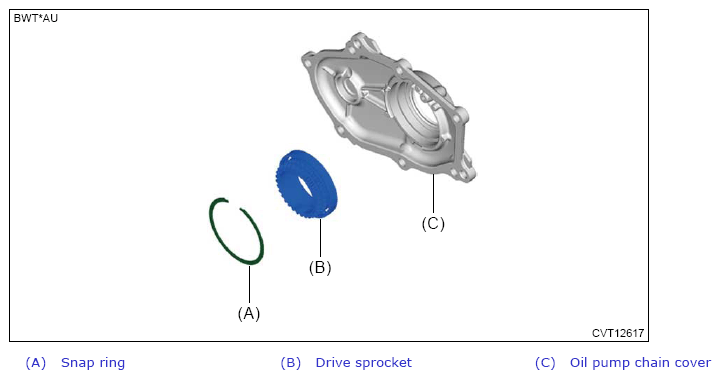

  3. Install the drive sprocket and snap ring.
    NOTE:

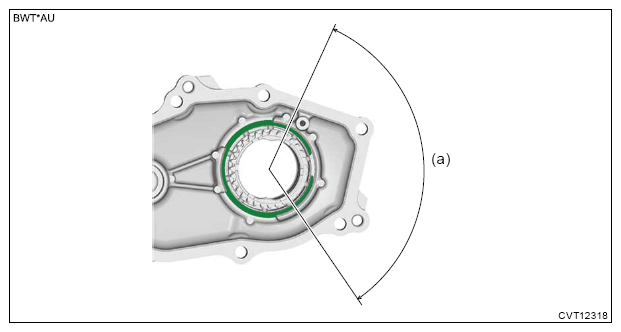

    Align the snap ring opening with the position (a) shown in the figure.

    G13622061Courtesy of SUBARU OF AMERICA, INC.
    G14611224Courtesy of SUBARU OF AMERICA, INC.

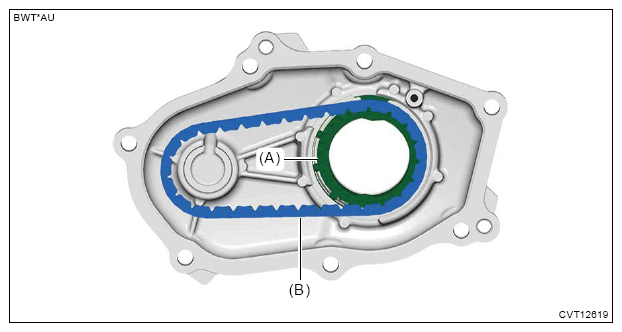

  4. Place the oil pump chain (B) on the drive sprocket (A).
    G13622063Courtesy of SUBARU OF AMERICA, INC.

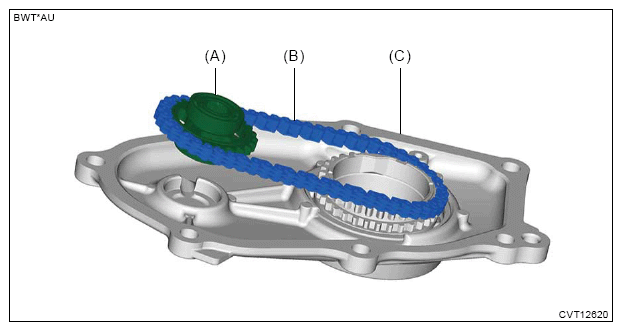

  5. Place the oil pump chain (B) on the driven sprocket (A), and install the driven sprocket (A) to the oil pump chain cover (C).
    G13622064Courtesy of SUBARU OF AMERICA, INC.

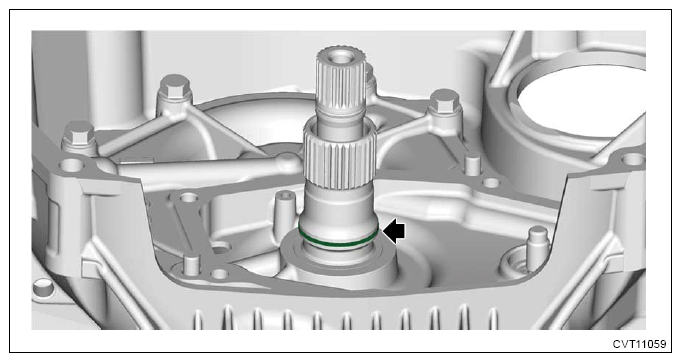

  6. Install a new seal ring.
    NOTE:
    • Apply CVTF to the seal rings.
    • Do not stretch the seal ring more than necessary.
    G13200335Courtesy of SUBARU OF AMERICA, INC.
  7. Apply liquid gasket to the mating surface of the oil pump chain cover as shown in the figure, and temporarily install the oil pump chain cover.
    NOTE:
    • Before applying liquid gasket, degrease the old liquid gasket seal surface of the oil pump chain cover and converter case.
    • Install within 5 min. after applying liquid gasket.

    Preparation items:

    Liquid gasket: THREE BOND 1215B or equivalent

    G13622066Courtesy of SUBARU OF AMERICA, INC.
    G14611229Courtesy of SUBARU OF AMERICA, INC.

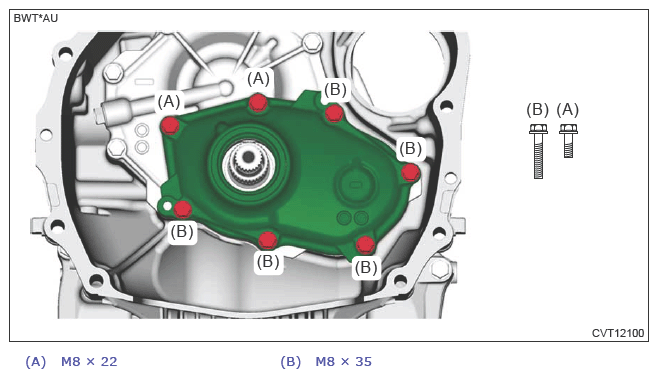

  8. Tighten the oil pump chain cover mounting bolts.

    Tightening torque:

    24 N.m (2.4 kgf-m, 17.7 ft-lb)

  9. Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>INSTALLATION
