Oil Pump Chain: Assembly
WARNING: This page is about a different variant/trim than selected.
- Using the ST and a press, press-fit a new ball bearing into the drive sprocket.
NOTE:
Apply CVTF to the press-fitting area.
Preparation tool:
ST: INSTALLER (20099AE020)
 Courtesy of SUBARU OF AMERICA, INC.
|

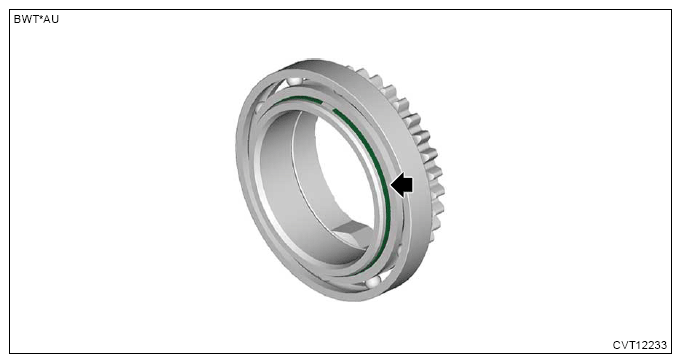

- Install the snap ring.
 Courtesy of SUBARU OF AMERICA, INC.
|
