Inhibitor Switch: Adjustment

WARNING: This page is about a different variant/trim than selected.

Release the shift lock and shift the select lever to the "N range". Ref. to CONTROL SYSTEMS>SELECT LEVER>REMOVAL
Loosen the bolts holding the inhibitor switch.

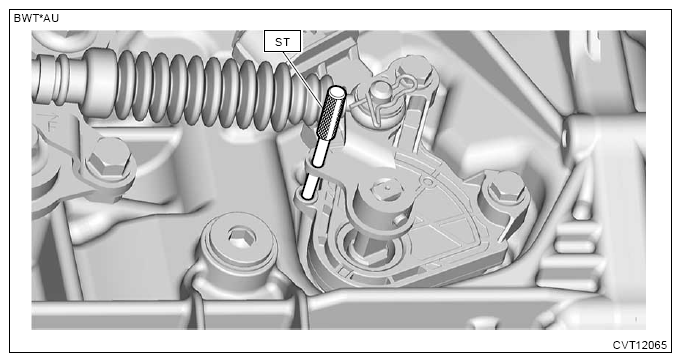

Insert the ST into the holes of the shifter arm and inhibitor switch.
NOTE:
Set the parts so that the center points of the holes are aligned.

Preparation tool:

ST: STOPPER PIN (499267300)

Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts holding the inhibitor switch.
Tightening torque:

5 N.m (0.5 kgf-m, 3.7 ft-lb)
