CVTF Cooler Pipe & Hose (Model With CVTF Cooler (Air Cool))

WARNING: This page is about a different variant/trim than selected.

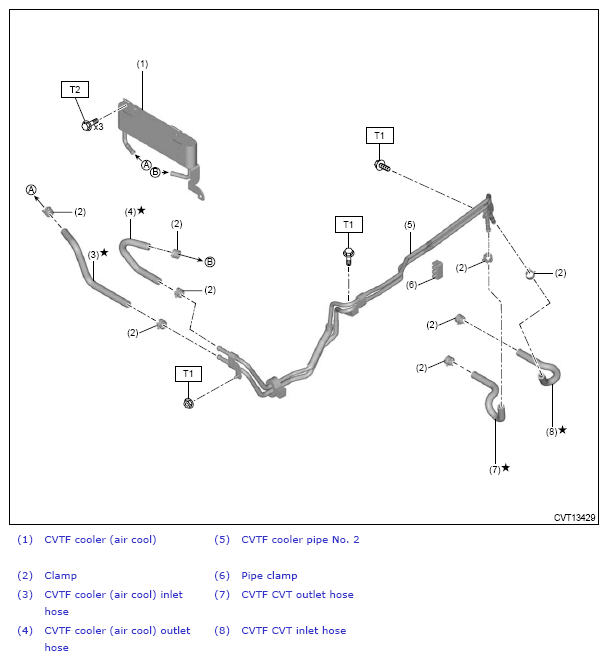

Fig 1: CVTF Cooler Pipe And Hose Components With Torque Specification (Model With CVTF Cooler, Air Cool)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 10 (1.0, 7.4)
