Front Reduction Driven Gear: Disassembly

WARNING: This page is about a different variant/trim than selected.

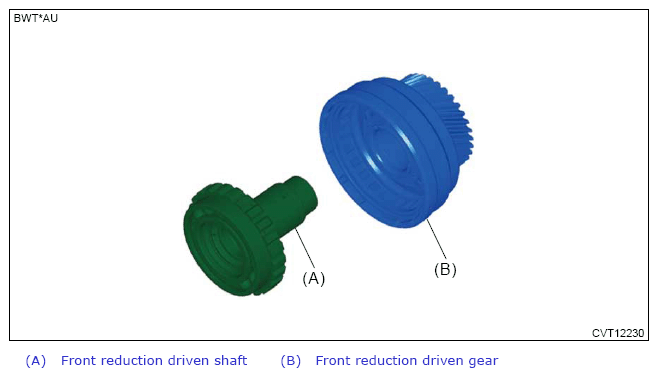

  1. Remove the front reduction driven shaft.
    G14611547Courtesy of SUBARU OF AMERICA, INC.

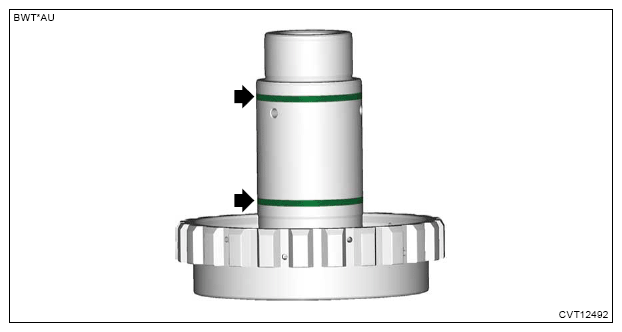

  2. Remove the seal rings.
    G13622378Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the ball bearing.
    1. Tap the ball bearing outer race to remove through the hole of front reduction driven shaft using the round bar with diameter of 7 mm (0.28 in).
      NOTE:

      Remove by tapping the entire circumference equally.

      G13200370Courtesy of SUBARU OF AMERICA, INC.

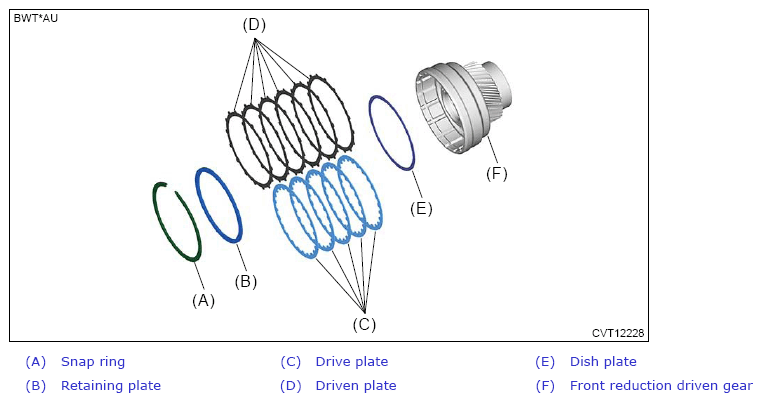

  4. Remove the snap ring, and then remove the retaining plate, drive plate, driven plate and dish plate.
    NOTE:

    In order to avoid installing the dish plate in the wrong direction, paint a mark before removal.

    G14611550Courtesy of SUBARU OF AMERICA, INC.
