Front Reduction Driven Gear: Assembly
WARNING: This page is about a different variant/trim than selected.
- Check the clutch clearance.

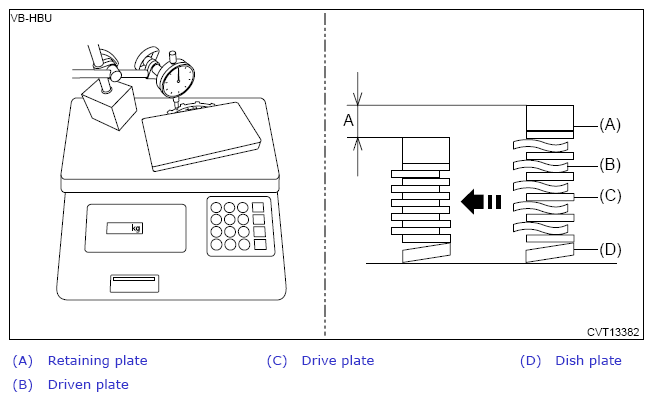

- Place the surface plate on a weight scale, and place the dish plate, driven plate, drive plate and retaining plate on the surface plate.
- Set the magnet stand and dial gauge to the surface table, and contact the dial gauge on the retaining plate to adjust the reading to the zero point.
- Adjust the reading of the weight scale to the zero point, place a weight so that the reading value of the weight scale becomes 13.3 kg (29.4 lb), and then measure the compression amount "A".NOTE:
- Prepare a weight with the length of one side equal to or longer than the retaining plate diameter, and also flat shape that allows load to be applied evenly.
- Measure at four points at 90° intervals and calculate the average.

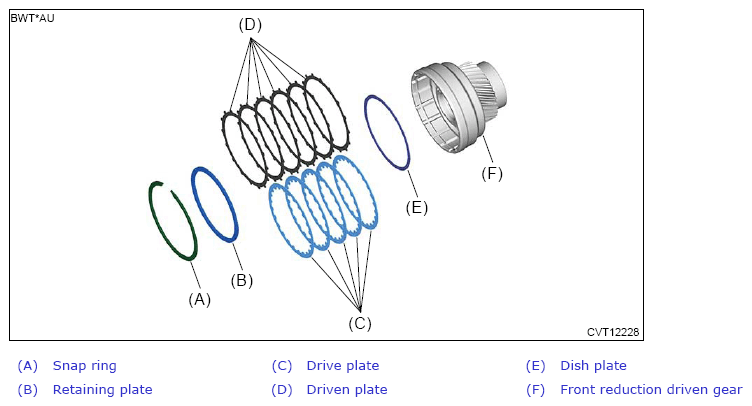

- Install the dish plate, driven plate, drive plate, retaining plate and snap ring.NOTE:
Face the painted surface of dish plate toward the driven plate side.

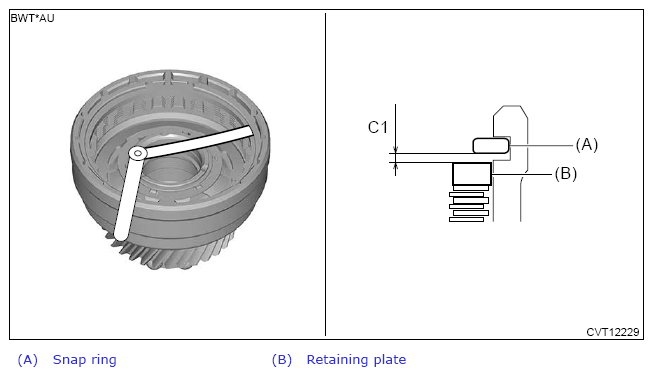

- Measure the clearance "C1" between snap ring and retaining plate using a thickness gauge.NOTE:
Before measuring, press down the whole circumference of retaining plate using your finger to fit in.
- Using the following calculation, calculate the clutch clearance "C".
Service limit:
3.36 mm (0.133 in)
C = A + C1
C Clutch clearance (mm (in)) A Measured value (mm (in)) of (3) C1 Measured value (mm (in)) of (5) - If the value exceeds the limit, perform the following operations.
- Measure thickness of the retaining plate.
- Replace the drive plate and driven plate with new parts, and then perform measurement from step (1) again.
Initial standard:
2.4 - 2.8 mm (0.09 - 0.11 in)
- If it exceeds the initial standard value, adjust the thickness of retaining plate to be within the initial standard value.
- Using a press, press-fit a new ball bearing.NOTE:
Apply CVTF to the press-fitting area.
- Install a new seal ring.NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.

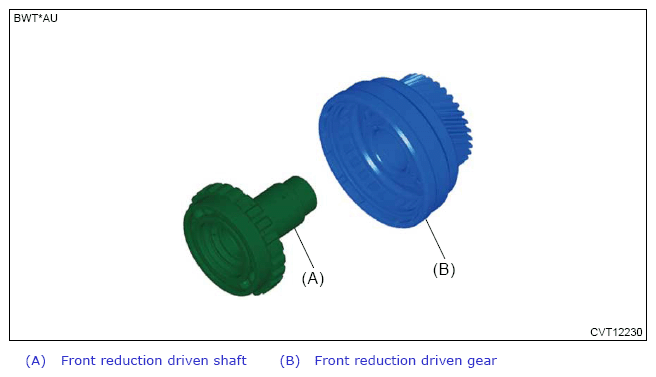

- Install the front reduction driven shaft.

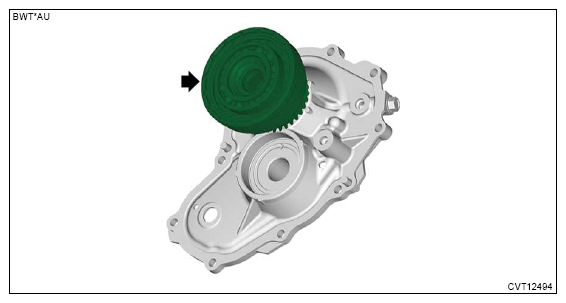

- Install the front reduction driven gear.

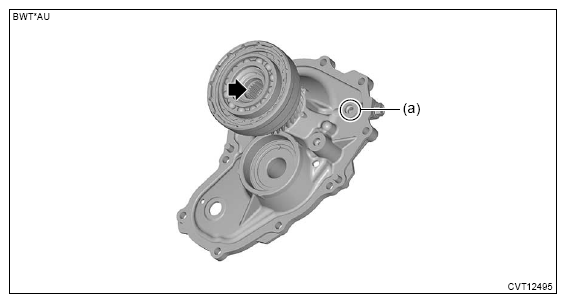

- Blow compressed air through the hole shown in the figure, and check the piston operation of the front reduction driven gear.NOTE:
Hold the hole (a) area with a cloth.
