Front Reduction Drive Gear: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE COVER>REMOVAL

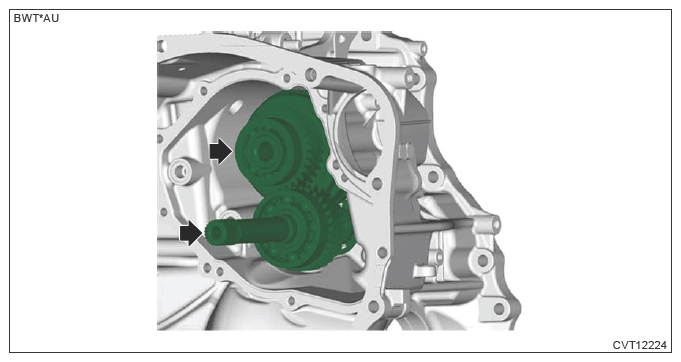

  2. Remove the front reduction drive gear and front reduction driven gear as a single unit.
    G13622366Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the front reduction driven gear shim (rear side).
    NOTE:

    The front reduction driven gear shim (front side) may remain on the front reduction driven gear.

    G13622367Courtesy of SUBARU OF AMERICA, INC.
