Front Reduction Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.

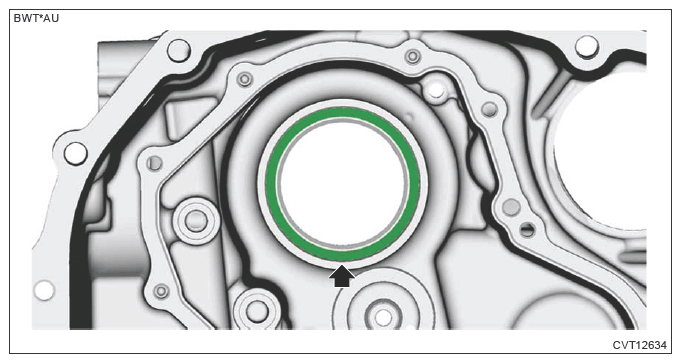

  1. Install the front reduction driven gear shim (rear side).
    G13622367Courtesy of SUBARU OF AMERICA, INC.

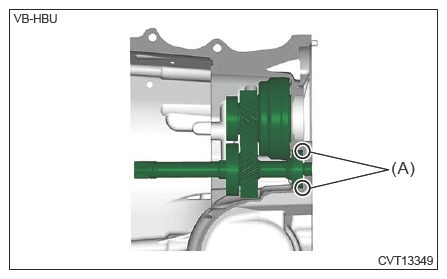

  2. Install the front reduction drive gear and front reduction driven gear as a single unit.
    NOTE:

    Make sure that the ball bearing (rear side) of the front reduction driven gear is fully in contact with the installation surface (A) of converter case.

    G14611540Courtesy of SUBARU OF AMERICA, INC.
  3. Install the converter case cover. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONVERTER CASE COVER>INSTALLATION
