Front Reduction Drive Gear: Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST and a press, press-fit a new ball bearing (front side).
    NOTE:

    Apply CVTF to the press-fitting area.

    Preparation tool:

    ST: INSTALLER (18651AA000)

    G13622374Courtesy of SUBARU OF AMERICA, INC.
  2. Press-fit a new ball bearing (rear side) using ST1, ST2 and a press.
    NOTE:

    Apply CVTF to the press-fitting area.

    Preparation tool:

    ST1: INSTALLER (499757002)

    ST2: INSTALLER (398177700)

    G13622375Courtesy of SUBARU OF AMERICA, INC.

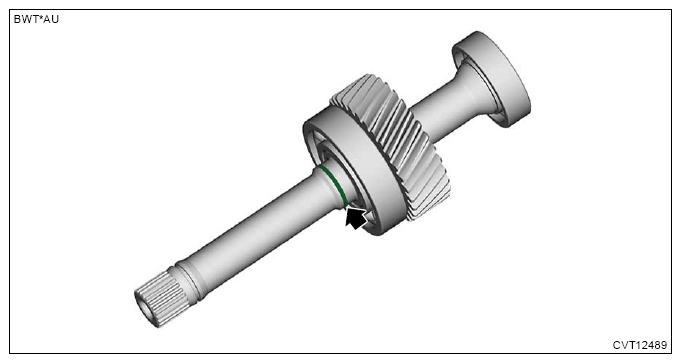

  3. Install a new seal ring.
    NOTE:
    • Apply CVTF to the seal rings.
    • Do not stretch the seal ring more than necessary.
    G13622371Courtesy of SUBARU OF AMERICA, INC.
