Planetary Carrier

WARNING: This page is about a different variant/trim than selected.

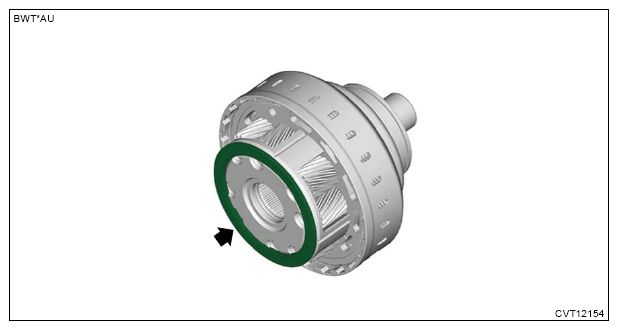

  1. Remove the thrust bearing.
    G13622166Courtesy of SUBARU OF AMERICA, INC.

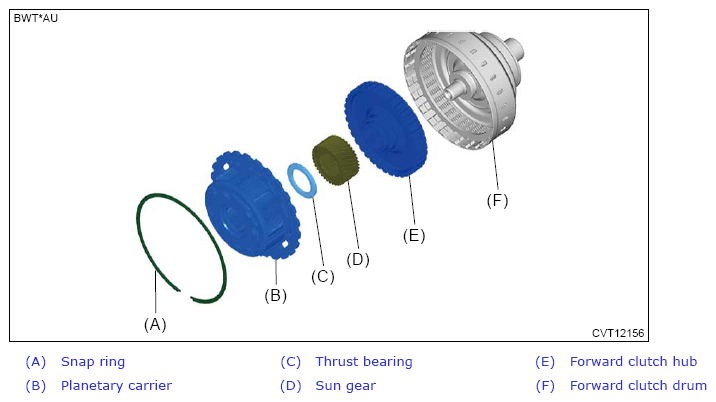

  2. Remove the snap ring, planetary carrier, thrust bearing, sun gear and forward clutch hub.
    G14611332Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the washer.
    G13622168Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the thrust bearing.
    G13622168Courtesy of SUBARU OF AMERICA, INC.
