Internal Gear

WARNING: This page is about a different variant/trim than selected.

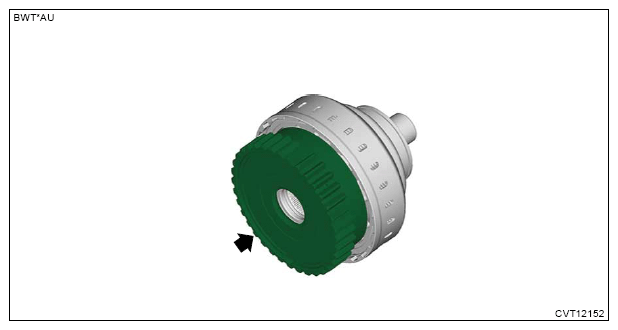

  1. Remove the internal gear.
    G13622164Courtesy of SUBARU OF AMERICA, INC.

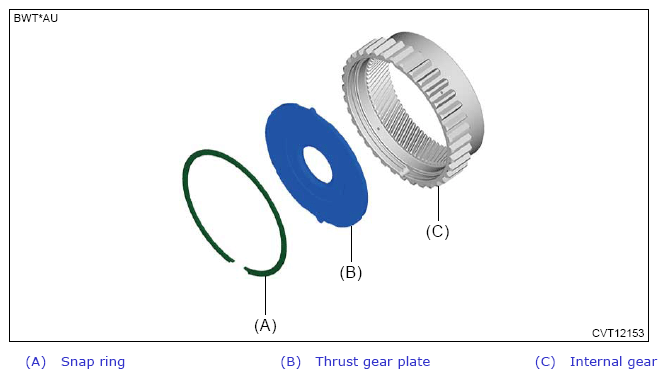

  2. Remove the snap ring and thrust gear plate.
    G14611330Courtesy of SUBARU OF AMERICA, INC.
