Forward Clutch

WARNING: This page is about a different variant/trim than selected.

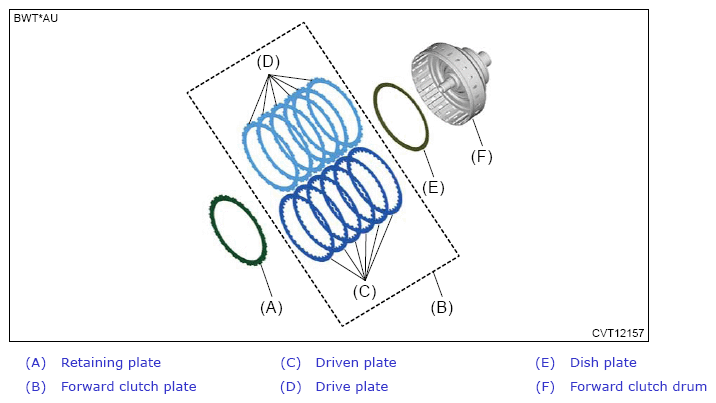

Remove the retaining plate, forward clutch plate set and dish plate.
NOTE:
In order to avoid installing the dish plate in the wrong direction, paint a mark before removal.

Courtesy of SUBARU OF AMERICA, INC.
Compress the return spring using the ST and a press to remove the snap ring.
Preparation tool:

ST: COMPRESSOR SPECIAL TOOL (18762AA001)

Courtesy of SUBARU OF AMERICA, INC.

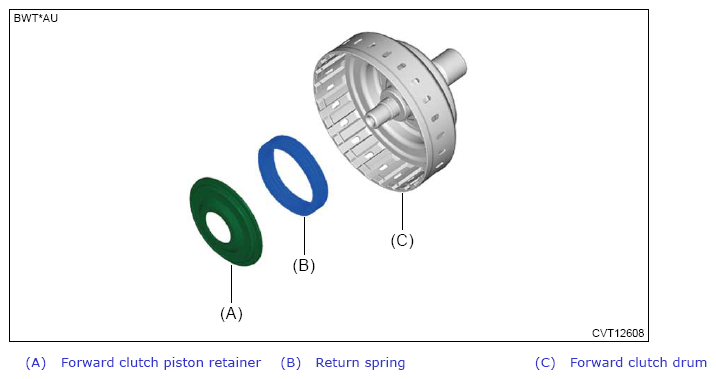

Remove the forward clutch piston retainer and return spring.

Courtesy of SUBARU OF AMERICA, INC.
Blow compressed air through the hole shown in the figure, and remove the forward clutch piston.

Courtesy of SUBARU OF AMERICA, INC.
