Internal Gear

WARNING: This page is about a different variant/trim than selected.

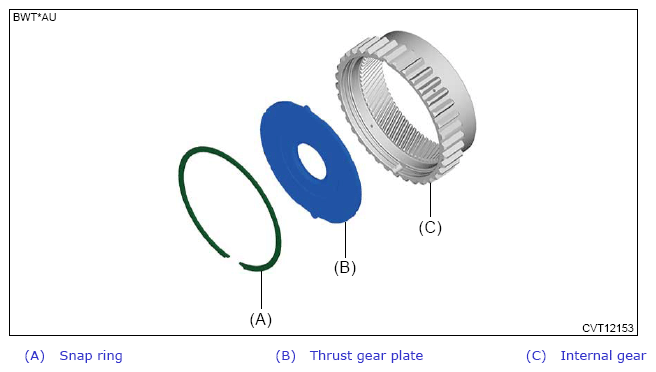

  1. Install the snap ring and thrust gear plate.
    G14611362Courtesy of SUBARU OF AMERICA, INC.
  2. Install the internal gear.
    G13622164Courtesy of SUBARU OF AMERICA, INC.
