Drive Pinion: Disassembly

WARNING: This page is about a different variant/trim than selected.

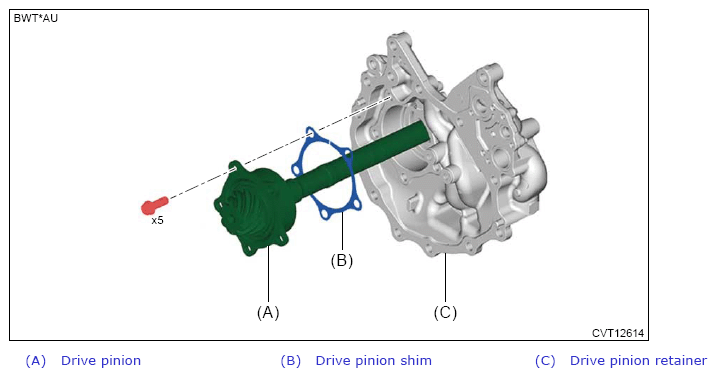

Remove the drive pinion and drive pinion shim.

Courtesy of SUBARU OF AMERICA, INC.
Flatten the tab of the lock nut.

Courtesy of SUBARU OF AMERICA, INC.
Using ST1 and ST2, fix at the spline portion of drive pinion to remove the lock nut.
Preparation tool:

ST1: WRENCH (499787700)

ST2: HOLDER (18667AA010)

Courtesy of SUBARU OF AMERICA, INC.
Remove the drive pinion collar (A) and O-ring (B).

Courtesy of SUBARU OF AMERICA, INC.
Using a press, remove the taper roller bearing inner race (rear side) and taper roller bearing outer race.
CAUTION:
Be careful not to drop the drive pinion.

Courtesy of SUBARU OF AMERICA, INC.

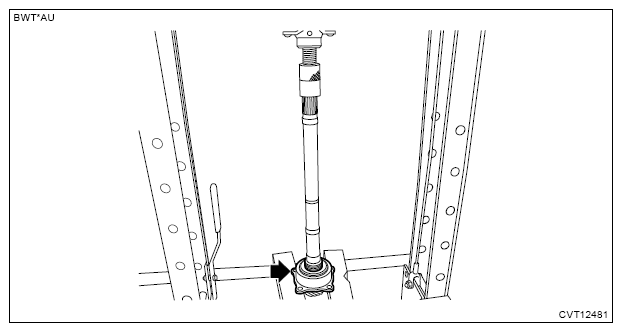

Using the ST and a press, remove the taper roller bearing inner race (front side).
CAUTION:
Be careful not to drop the drive pinion.

Preparation tool:

ST: REMOVER (498077600)

Courtesy of SUBARU OF AMERICA, INC.

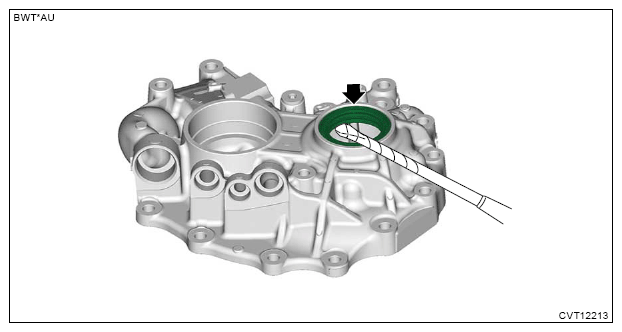

Remove the oil seal from the drive pinion retainer using a flat tip screwdriver wrapped with protection tape.

Courtesy of SUBARU OF AMERICA, INC.
Remove the plug.

Courtesy of SUBARU OF AMERICA, INC.
