Differential Side Retainer Oil Seal: Replacement

WARNING: This page is about a different variant/trim than selected.

Drain differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>REPLACEMENT
Remove the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT DRIVE SHAFT>REMOVAL

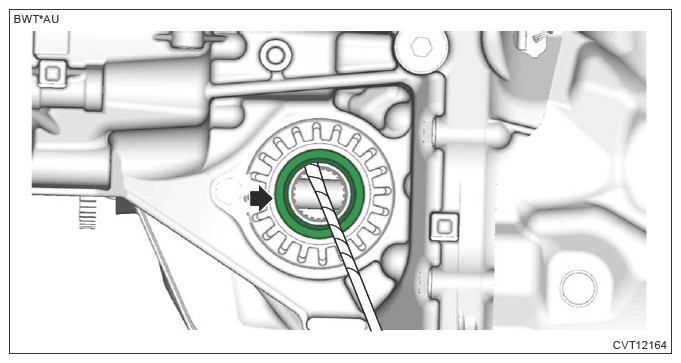

Remove the differential side retainer oil seal using a flat tip screwdriver wrapped with protection tape, etc.

Courtesy of SUBARU OF AMERICA, INC.

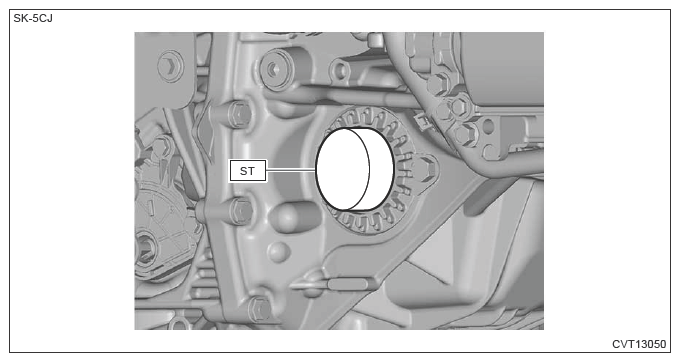

Install the new differential side retainer oil seal using the ST.
NOTE:
- Apply differential oil to the lip section of the differential side retainer oil seal.
- Since the differential side retainer oil seal has an identification mark (R or L), be careful not to mix up the RH and LH when installing.
Preparation tool:

ST: DIFFERENTIAL SIDE OIL SEAL INSTALLER (18675AA000)

Courtesy of SUBARU OF AMERICA, INC.
Install the front drive shaft. Ref. to PROPELLER SHAFT/DRIVE SHAFT/AXLE>FRONT DRIVE SHAFT>INSTALLATION
Fill differential gear oil. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DIFFERENTIAL GEAR OIL>REPLACEMENT
