Center Differential Carrier: Assembly

WARNING: This page is about a different variant/trim than selected.

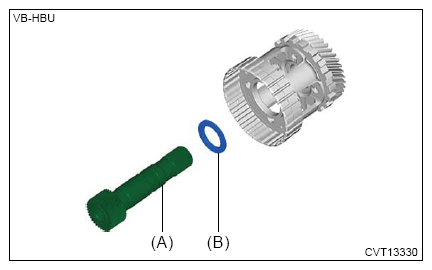

  1. Install the intermediate shaft and thrust bearing to the center differential carrier.
    G14611285Courtesy of SUBARU OF AMERICA, INC.

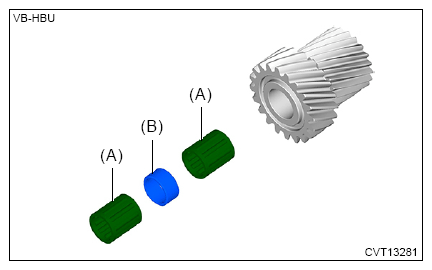

  2. Install the needle bearing and spacer to the pinion gear.
    G14611286Courtesy of SUBARU OF AMERICA, INC.

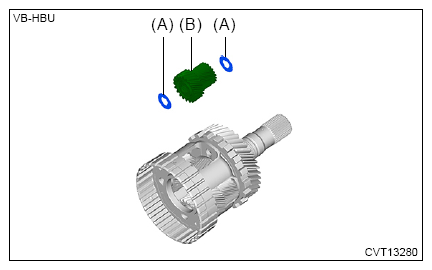

  3. Install the pinion gear and washers to the center differential carrier.
    G14611287Courtesy of SUBARU OF AMERICA, INC.
  4. Install the pinion shaft.
    NOTE:
    • Install with the plug facing the center differential carrier side.
    • Install the pinion shaft with the cutout facing inward.
    G14611288Courtesy of SUBARU OF AMERICA, INC.
  5. Install the snap ring.
