CVTF Cooler Pipe No. 2

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Wait until the CVTF cools down before starting the procedure.
If CVTF spills over the engine, exhaust pipe, etc., completely wipe it off to avoid emission of smoke and causing a fire.

Remove the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY>REMOVAL
Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)
Remove the CVTF CVT inlet hose and CVTF CVT outlet hose.
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.

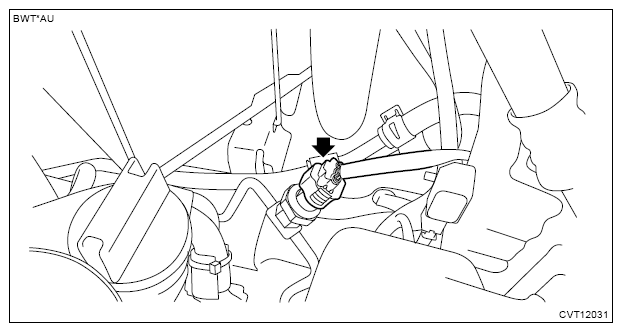

Disconnect the connector from the sensor assembly pressure.

Courtesy of SUBARU OF AMERICA, INC.

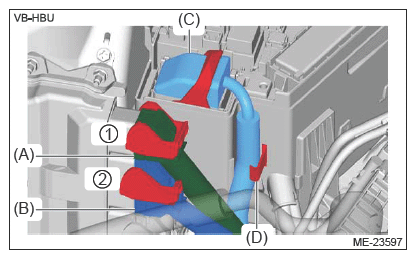

Remove the connector (A) and connector (B) in numerical order shown in figure.
Disconnect the connector (C), and remove the engine wiring harness from the clip (D).

Courtesy of SUBARU OF AMERICA, INC.
Release the claw securing the engine wiring harness to the bracket, and place it aside so that it does not interfere with work.

Courtesy of SUBARU OF AMERICA, INC.
Remove the beam COMPL front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL>BUMPER BRACKET

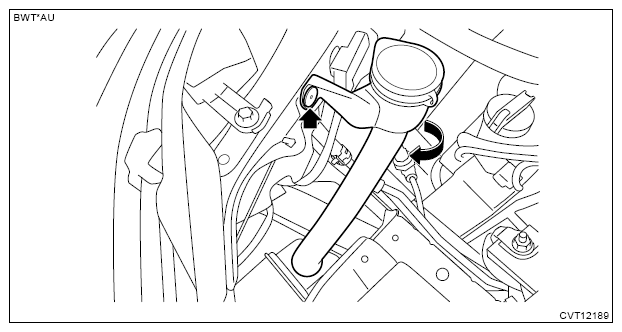

Remove the washer tank mounting clips, and rotate it aside so that it does not interfere with work.

Courtesy of SUBARU OF AMERICA, INC.

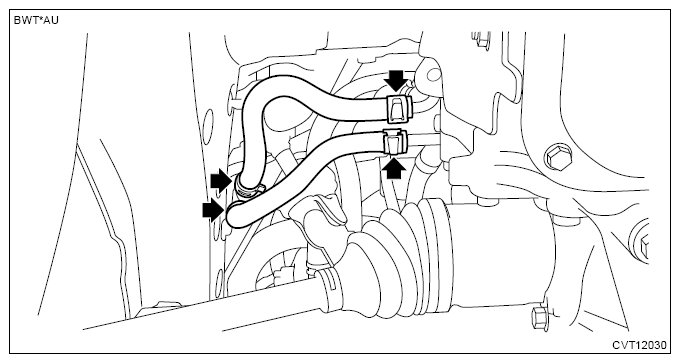

Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.

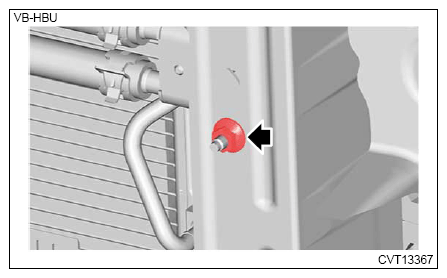

Remove the nut securing the CVTF cooler pipe No. 2.

Courtesy of SUBARU OF AMERICA, INC.

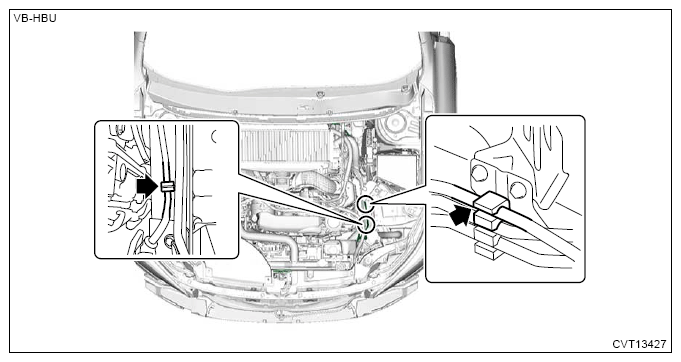

Remove the pipe evaporator cooling from the clip and pipe clamp.

Courtesy of SUBARU OF AMERICA, INC.

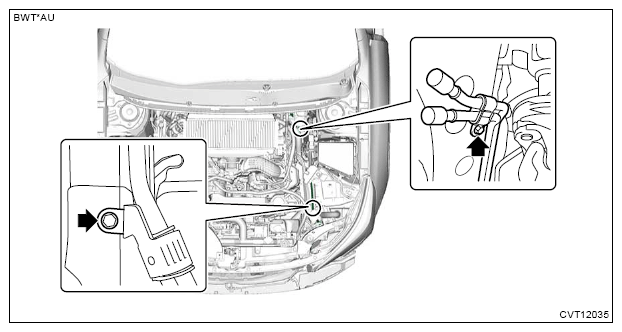

Remove the CVTF cooler pipe No. 2.
CAUTION:
Be careful not to bend the pipe evaporator cooling.

Courtesy of SUBARU OF AMERICA, INC.

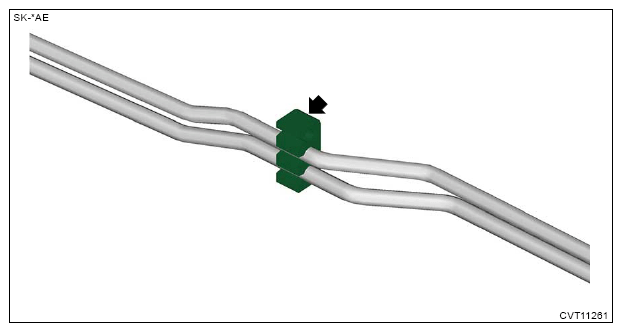

Remove the pipe clamp.

Courtesy of SUBARU OF AMERICA, INC.
