CVTF Cooler Pipe No. 1

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Wait until the CVTF cools down before starting the procedure.
If CVTF spills over the engine, exhaust pipe, etc., completely wipe it off to avoid emission of smoke and causing a fire.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL
Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL

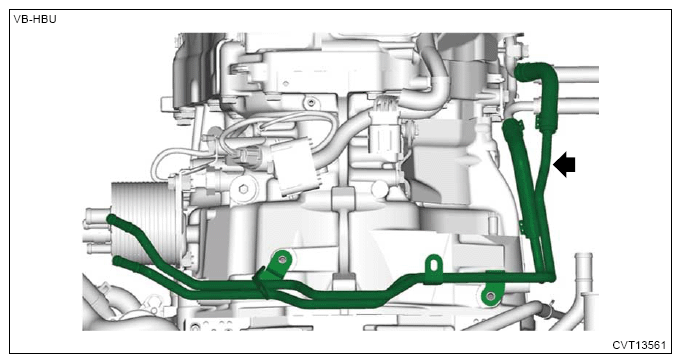

Disconnect the connector (A) and connector (B), and remove the clip (C), clip (D) and clip (E).

Courtesy of SUBARU OF AMERICA, INC.

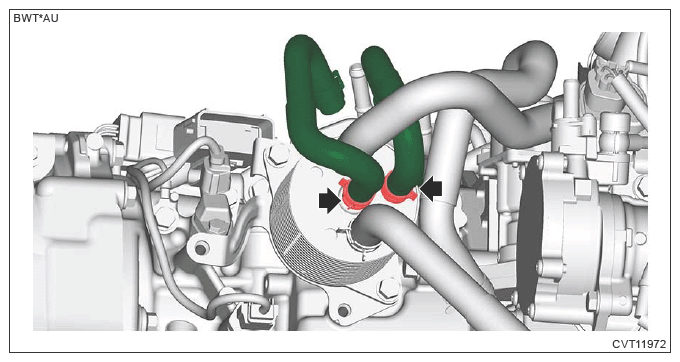

Disconnect the CVTF cooler inlet hose and CVTF cooler outlet hose.
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.

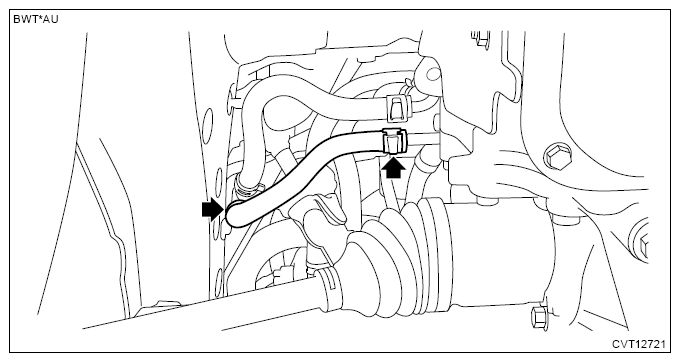

Remove the CVTF cooler inlet hose and CVTF cooler outlet hose.

Courtesy of SUBARU OF AMERICA, INC.

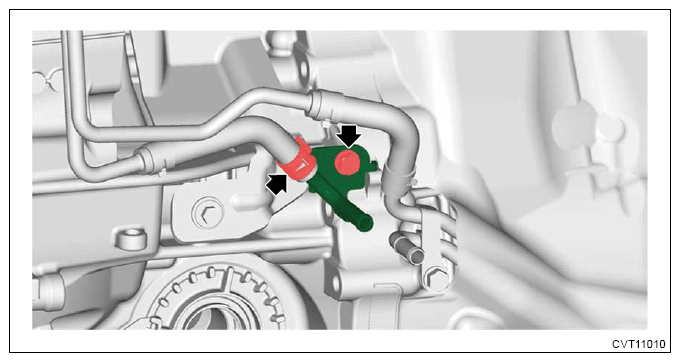

Remove the bolts securing the CVTF cooler pipe No. 1.

Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>REMOVAL>CENTER EXHAUST PIPE (REAR)
Disconnect the CVTF cooler inlet hose and CVTF cooler outlet hose. (Model without CVTF cooler (air cool))

Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF CVT inlet hose. (Model with CVTF cooler (air cool))

Courtesy of SUBARU OF AMERICA, INC.
Remove the oil cooler pipe. (Model with CVTF cooler (air cool))

Courtesy of SUBARU OF AMERICA, INC.
Disconnect the CVTF cooler outlet hose. (Model with CVTF cooler (air cool))

Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF cooler pipe No. 1, CVTF cooler inlet hose and CVTF cooler outlet hose as a single unit.

Courtesy of SUBARU OF AMERICA, INC.
Remove the CVTF cooler inlet hose and CVTF cooler outlet hose.

Courtesy of SUBARU OF AMERICA, INC.
