CVTF Cooler Pipe No. 2
WARNING: This page is about a different variant/trim than selected.
- Install the pipe clamp.
- Install the CVTF cooler pipe No. 2.CAUTION:
Be careful not to bend the pipe evaporator cooling.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)
- Install the pipe evaporator cooling to the clip and pipe clamp.
- Install a new CVTF cooler (air cool) inlet hose and a new CVTF cooler (air cool) outlet hose.
- Install a new CVTF cooler (air cool) inlet hose and a new CVTF cooler (air cool) outlet hose to the CVTF cooler (air cool).NOTE:

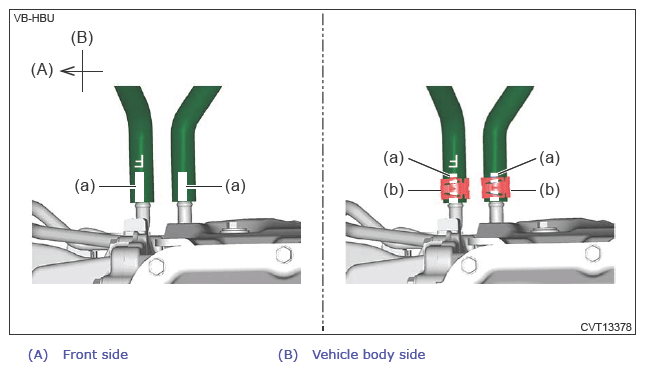

- Face the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air hose) outlet hose by 45° toward you from the top-facing position.
- Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose.
- Set the hose clamps (b) so that the both ends of the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose can be seen.
- Connect the CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose to the CVTF cooler pipe No. 2.NOTE:
- Face the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose toward the front side.
- Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose.
- Set the hose clamps (b) so that the both ends of the marks (a) of CVTF cooler (air cool) inlet hose and CVTF cooler (air cool) outlet hose can be seen.
- Install a new CVTF cooler (air cool) inlet hose and a new CVTF cooler (air cool) outlet hose to the CVTF cooler (air cool).
- Install the washer tank mounting clips.
- Install the beam COMPL front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>INSTALLATION
- Set the engine wiring harness and secure the engine wiring harness to the bracket with the claw.
- Install the engine wiring harness to the clip (A), and connect the connector (B).
- Connect the connector (C) and connector (D) in numerical order shown in figure.
- Connect the connector to the sensor assembly pressure.
- Connect a new CVTF CVT inlet hose and a new CVTF CVT outlet hose.
- Transmission sideNOTE:
- Face the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose in the bottom direction.
- Align the claws and the centers of the claws of hose clamps (b) with the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose.
- Set the hose clamps (b) so that the both ends of the marks (a) of CVTF CVT inlet hose and CVTF CVT outlet hose can be seen.
- CVTF cooler pipe No. 2 sideNOTE:
Set the hose clamps (a) as shown in the figure.
- Transmission side
- Install the center exhaust pipe (rear). Ref. to EXHAUST (H4DOTC)>CENTER EXHAUST PIPE>INSTALLATION>CENTER EXHAUST PIPE (REAR)
- Install the battery. Ref. to STARTING/CHARGING SYSTEMS (H4DOTC)>BATTERY>INSTALLATION
- Check the CVTF level. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CVTF>INSPECTION
