CVTF Cooler (Air Cooling): Removal

WARNING: This page is about a different variant/trim than selected.

CAUTION:

Wait until the CVTF cools down before starting the procedure.
If CVTF spills over the engine, exhaust pipe, etc., completely wipe it off to avoid emission of smoke and causing a fire.

NOTE:

CVTF cooler (air cool) is installed only on some models.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY
Remove the beam COMPL front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT BUMPER>REMOVAL

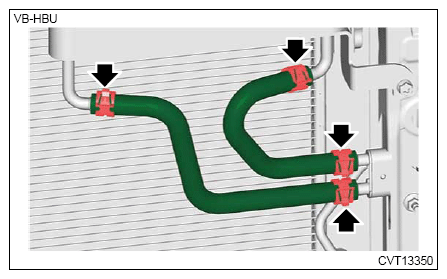

Remove the CVTF cooler (air cool) inlet hose and the CVTF cooler (air cool) outlet hose.
NOTE:
Prepare the container for draining of engine oil.

Courtesy of SUBARU OF AMERICA, INC.

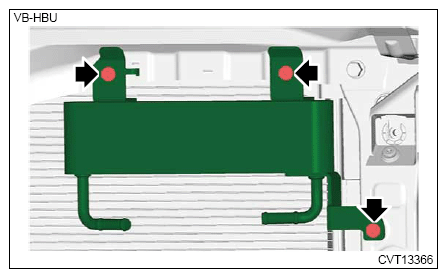

Remove the CVTF cooler (air cool).

Courtesy of SUBARU OF AMERICA, INC.
