Air Breather Hose: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL

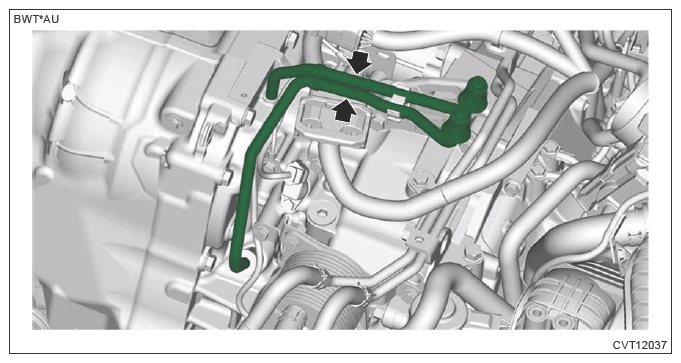

  2. Remove the air breather hose.
    G13622042Courtesy of SUBARU OF AMERICA, INC.

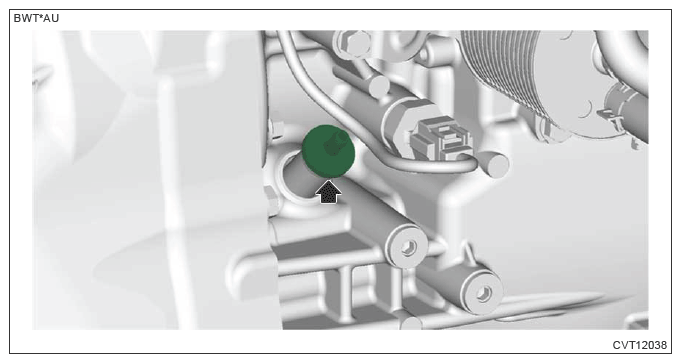

  3. Remove the oil charge pipe cap.
    NOTE:

    Perform this procedure only when required.

    G13622043Courtesy of SUBARU OF AMERICA, INC.

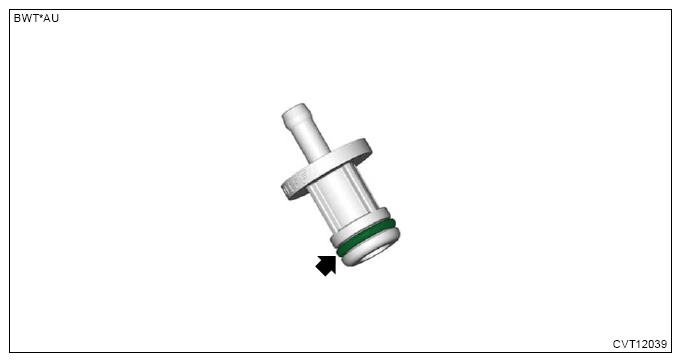

  4. Remove the O-rings.
    G13622044Courtesy of SUBARU OF AMERICA, INC.
