Intake Duct No. 1

  1. Remove the under cover front. Ref. to EXTERIOR/INTERIOR TRIM>FRONT UNDER COVER>REMOVAL
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT
  3. Disconnect the air intake boot from the air intake duct No. 1.
    G14610451Courtesy of SUBARU OF AMERICA, INC.
  4. Release the lock by sliding the spring, and disconnect the PCV pipe assembly from the intake duct No. 1.
    G14610462Courtesy of SUBARU OF AMERICA, INC.
  5. Disconnect the vacuum hose and the water hose.
    G14610463Courtesy of SUBARU OF AMERICA, INC.

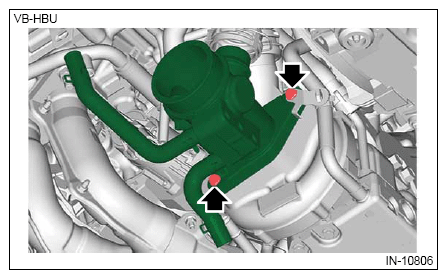

  6. Remove the bolt, and remove the intake duct No. 1.
    NOTE:

    The upper bolt is tightened together with the hose stay.

    G14610464Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the gasket (A) and O-ring (B) from the intake duct No. 1.
    G14610465Courtesy of SUBARU OF AMERICA, INC.
  8. Disconnect the water hose from the intake duct No. 1.
    NOTE:

    Perform this procedure only when required.

    G13619992Courtesy of SUBARU OF AMERICA, INC.
