Telematics System: Wiring Diagram

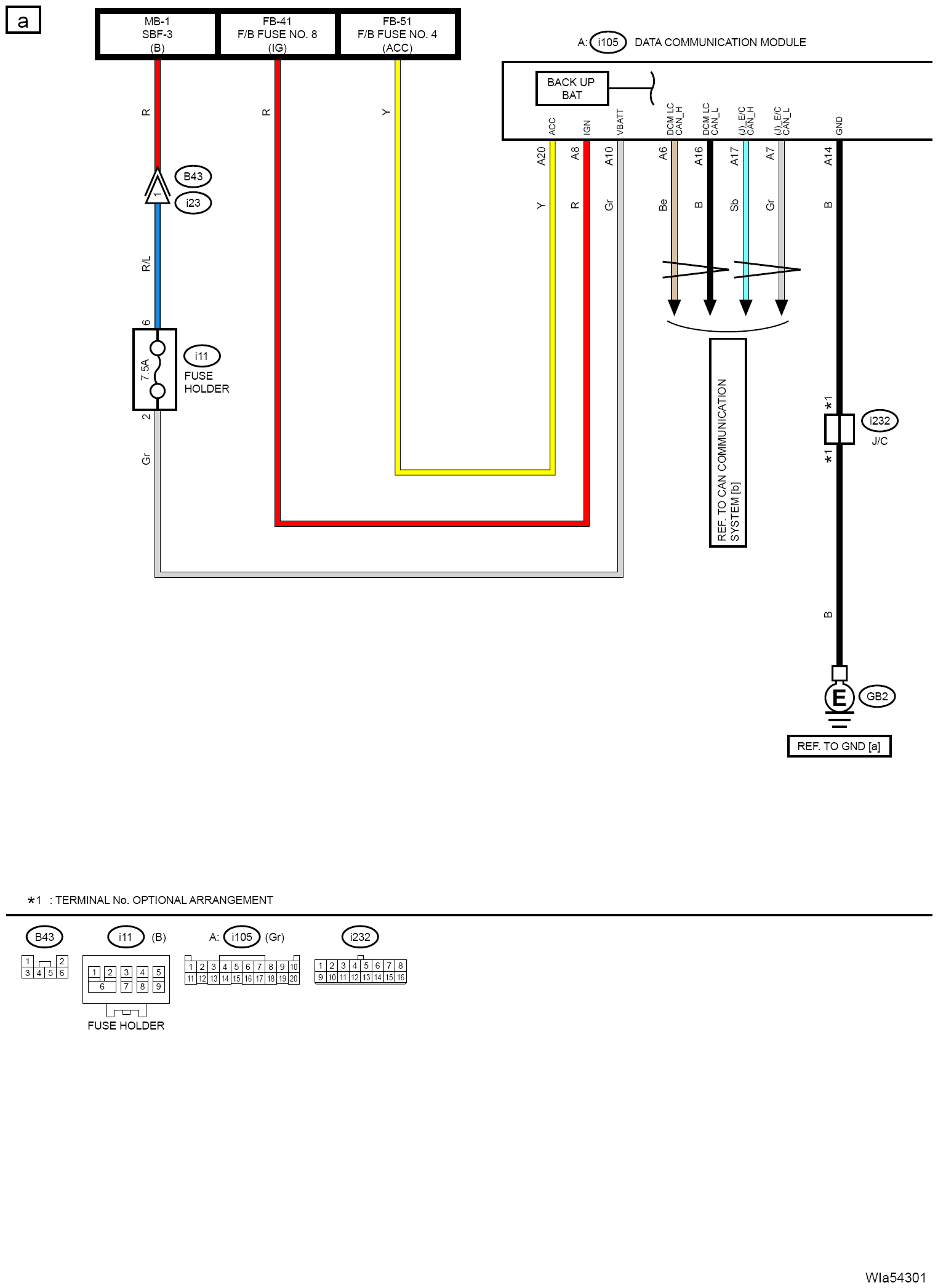

G14613542Courtesy of SUBARU OF AMERICA, INC.

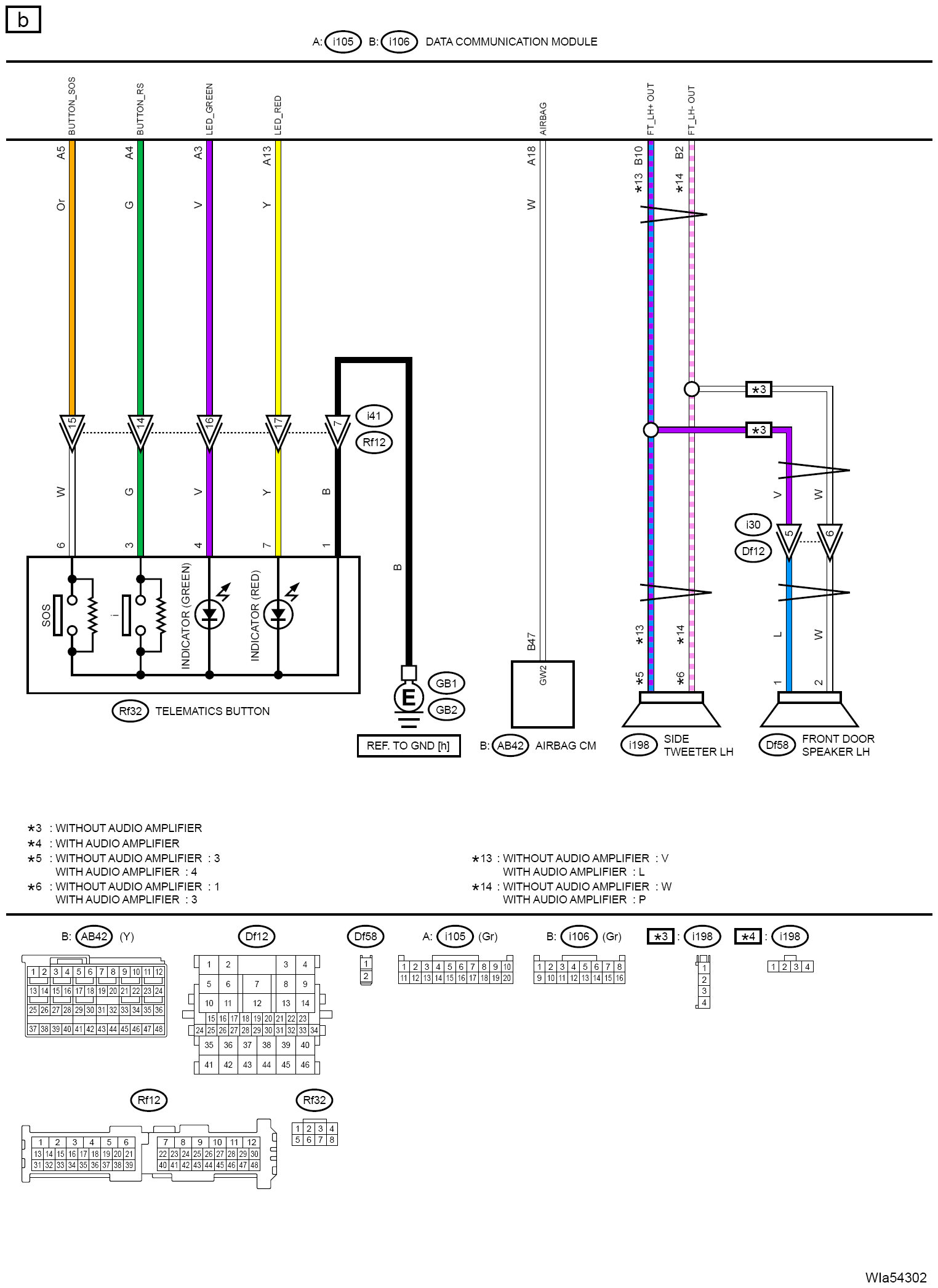

G14613543Courtesy of SUBARU OF AMERICA, INC.

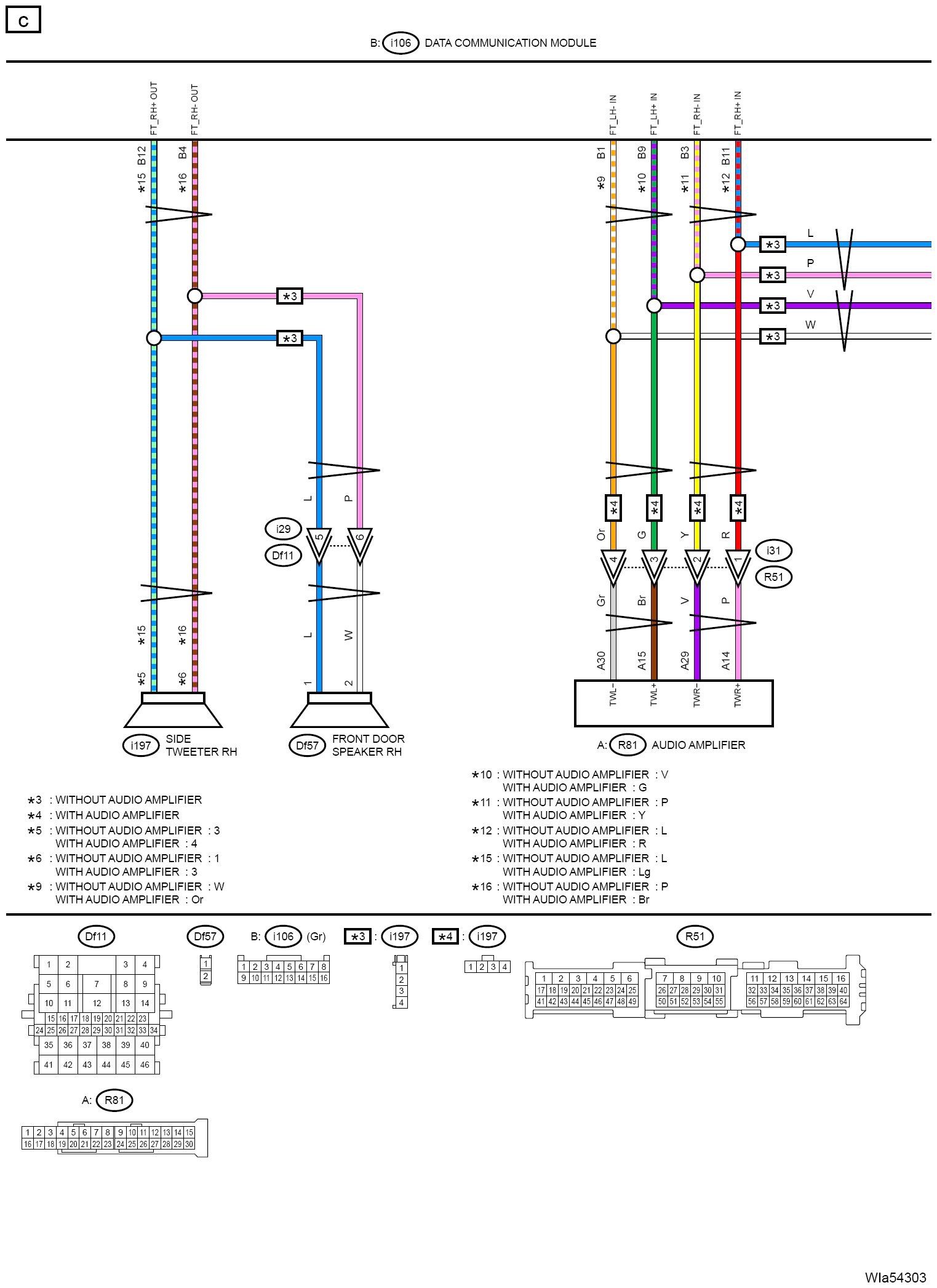

G14613544Courtesy of SUBARU OF AMERICA, INC.

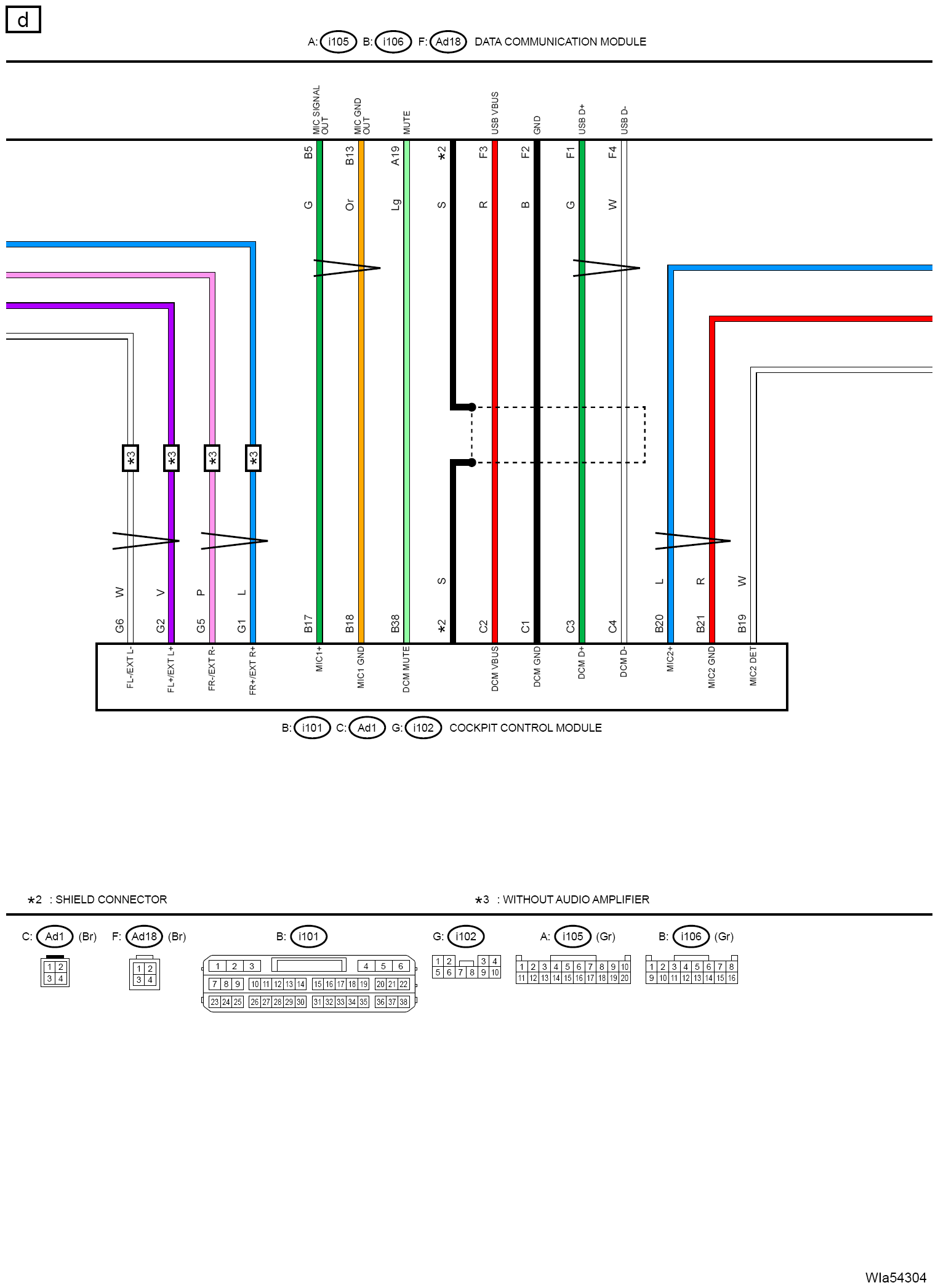

G14613545Courtesy of SUBARU OF AMERICA, INC.
G14613546Courtesy of SUBARU OF AMERICA, INC.
