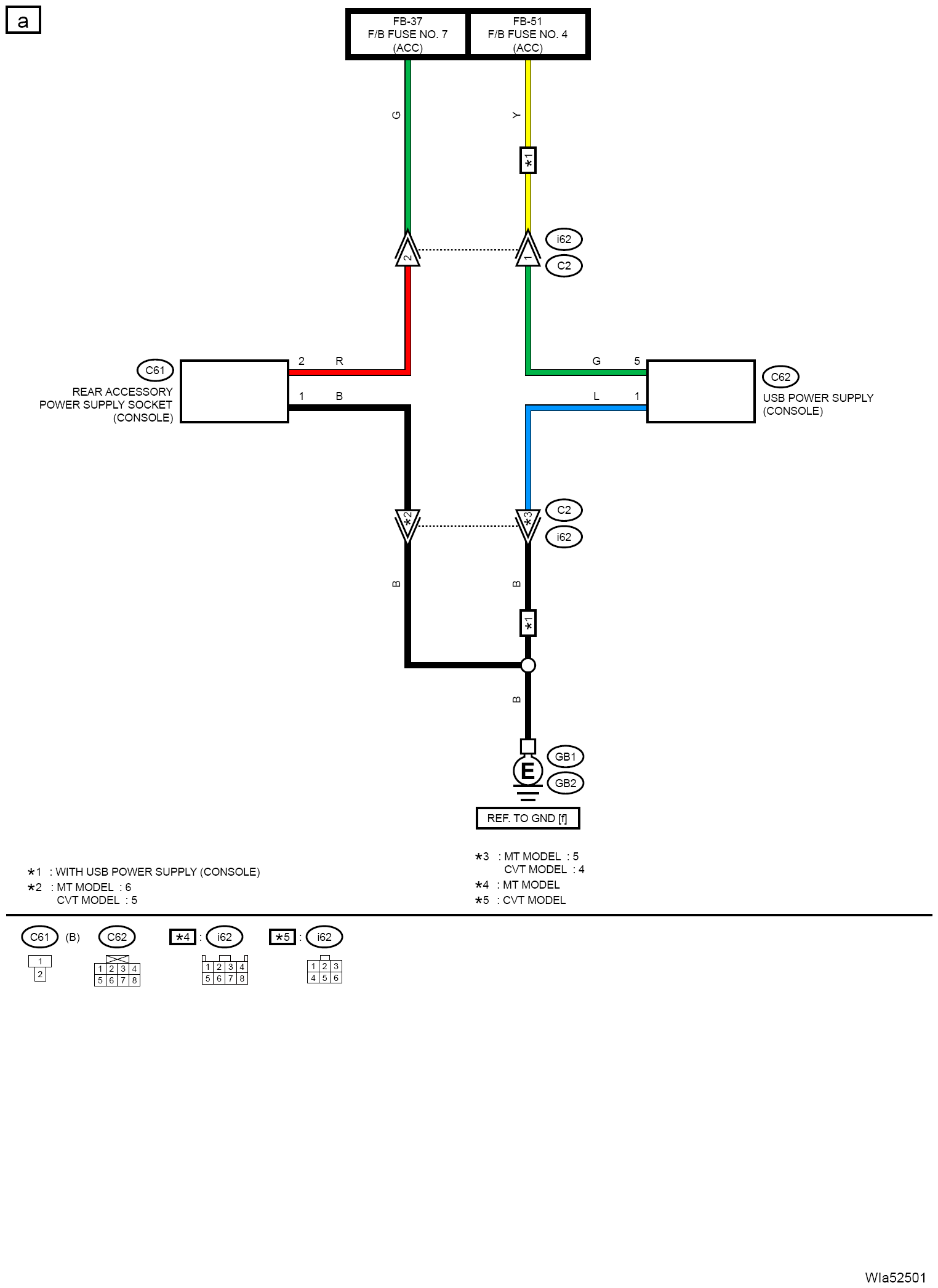

Rear Accessory Power Supply Socket System: Wiring Diagram

G14613503

Courtesy of SUBARU OF AMERICA, INC.
