Parking Brake/Brake Fluid Level Warning Light System
>>
Wiring Diagram

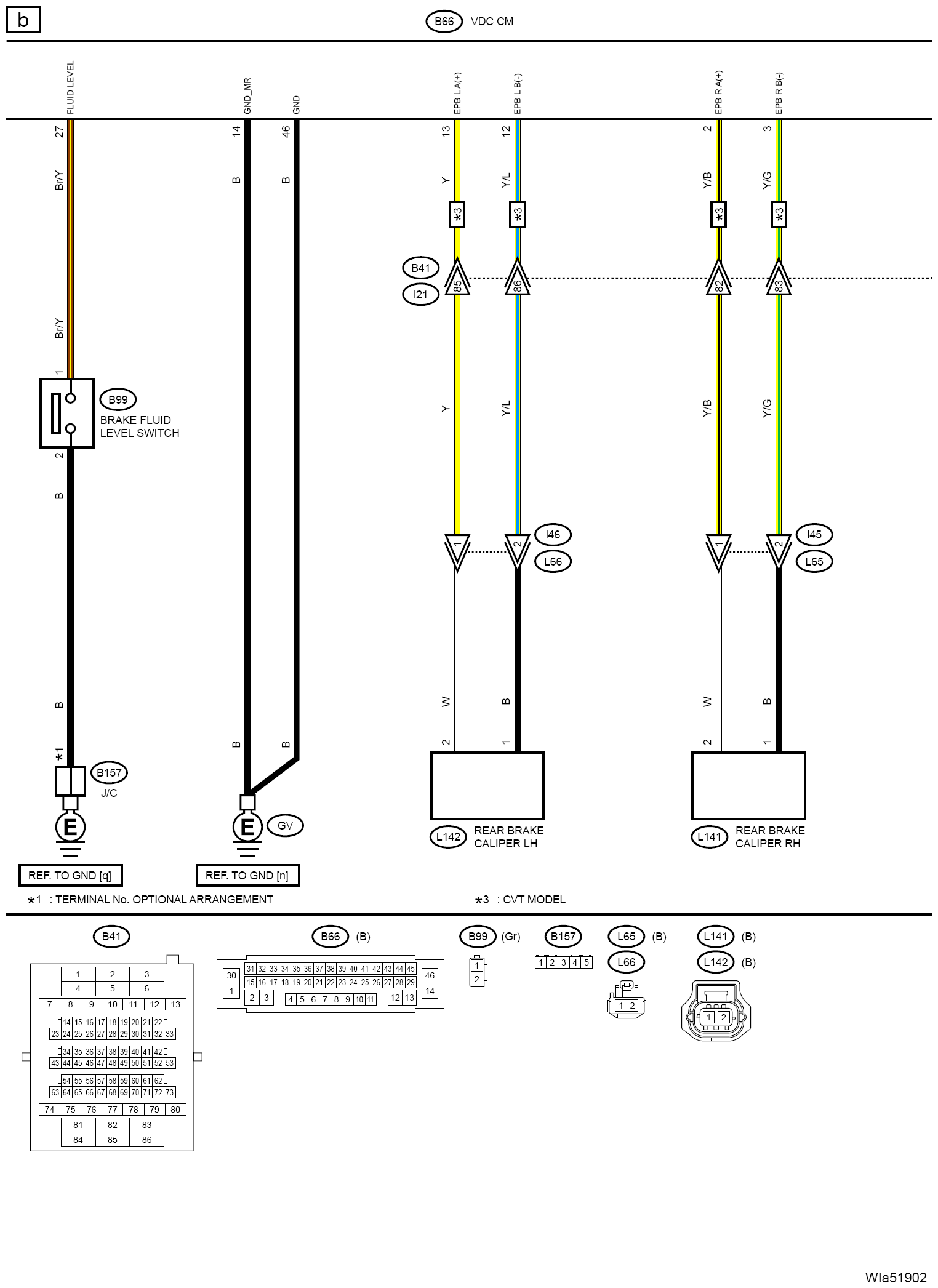

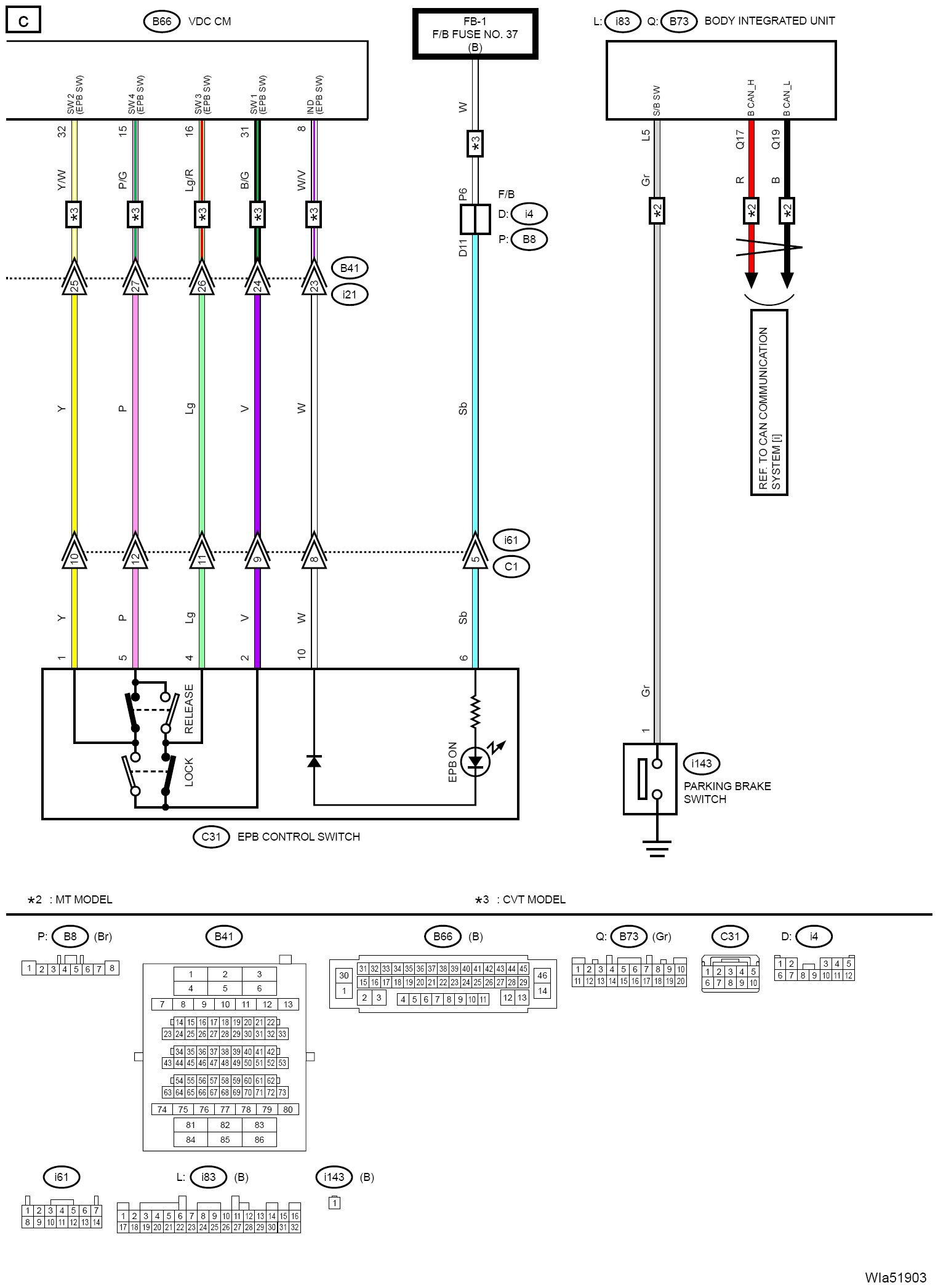

Parking Brake/Brake Fluid Level Warning Light System: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
